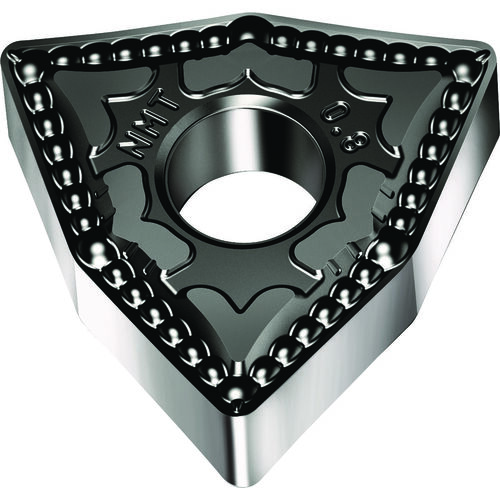

WNMG432-NMT WSM20S
Turning Insert; 80 Trigon ; 8.687 mm Length × 12.7 mm IC × 0.8 mm Corner Radius ; WSM20S ; Carbide ; | Al2O3 | TiAlN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Min D.O.C. | 0.8 mm |
| Insert Style | WNMG | Depth of Cut Maximum (APMX) | 4 mm |
| Corner Radius (RE) | 0.8 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 432 | Number of Cutting Edges | 6 |
| Cutting Edge Length (L) | 8.687 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 4.763 mm | Chip Breaker Type | NMT |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Shape | 80° Trigon |
| Coating | | Al2O3 | TiAlN | | Series/List # | WNMG-NMT |
| Grade | WSM20S | Cutting Depth Maximum (CDX) | 4 mm |
| Fixing Hole Diameter (D1) | 5.16 mm | Cutting Edge Effective Length (LE) | 8.687 mm |
| Tool Type | Turning Insert | Model No | WNMG080408-NMT WSM20S |
Product Features
| Country of Origin | Germany |
