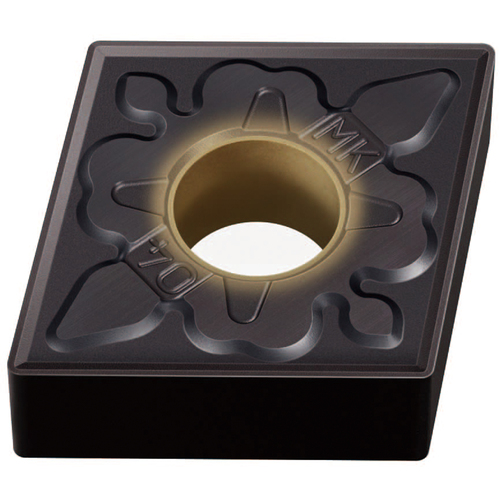

CNMG543MK MC5015 INSERT
Turning Insert; 80 Rhombic × 15.875 mm IC × 1.2 mm Corner Radius ; MC5015 ; Carbide
| Applicable Material | | Cast Iron | | Grade | MC5015 |
| Application | Medium Cutting | Fixing Hole Diameter (D1) | 6.35 mm |
| Insert Style | CNMG | Tool Type | Turning Insert |
| Corner Radius (RE) | 1.2 mm | Cutting Direction (HAND) | Neutral |
| Insert Size | 543 | Chip Breaker Type | MK |
| Insert Thickness (S) | 6.35 mm | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 15.875 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 80 Degrees | Shape | 80° Rhombic |
| Cutting Edge Material | Carbide | Series/List # | MC5015 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.04
