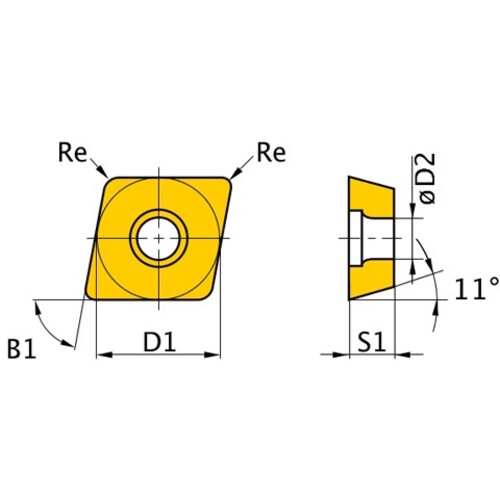

CPMH 320.5 flat_top MD220, 0.2 mm Corner Radius, 3.18 mm Thick, 9.525 mm Inscribed Circle, Turning Indexable Insert
Turning Insert; 80 Rhombic × 9.525 mm IC × 0.2 mm Corner Radius ; MD220 ; PCD
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Fixing Hole Diameter (D1) | 4.5 mm |
| Application | Finish Cutting | Tool Type | Turning Insert |
| Insert Style | CPMH | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.2 mm | Cutting Direction (HAND) | Neutral |
| Insert Size | 320.5 | Chip Breaker Type | flat_top |
| Insert Thickness (S) | 3.18 mm | Quantity | 1 |
| Inscribed Circle Diameter (IC) | 9.525 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 80 Degrees | Shape | 80° Rhombic |
| Cutting Edge Material | PCD | Series/List # | MD220 |
| Grade | MD220 | Cutting Edge Effective Length (LE) | 1.8 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.4000
