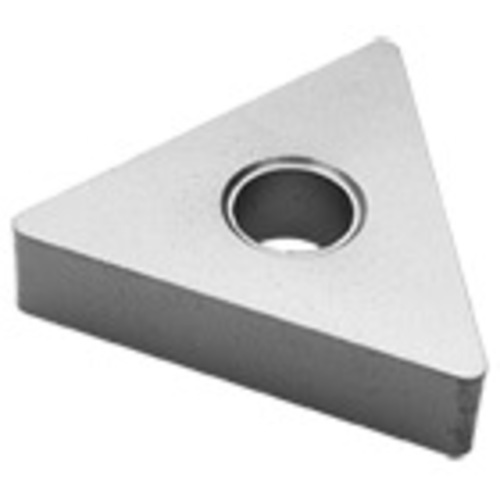

TNGA 432 Grade PCA2 - Turning Insert
Turning Insert; Triangle ; 1/2″ Length × 1/2″ IC × 0.031″ Corner Radius ; PCA2 ; Ceramic
| Applicable Material | | Steel | Cast Iron | | Inscribed Circle Diameter (IC) | 1/2″ |
| Insert Style | TNGA | Cutting Edge Material | Ceramic |
| Corner Radius (RE) | 0.031″ | Grade | PCA2 |
| Insert Size | 432 | Tool Type | Turning Insert |
| Cutting Edge Length (L) | 1/2″ | Shape | Triangle |
| Insert Thickness (S) | 0.187″ |
Product Features
| Remarks | •Ceramic Inserts for Hi-Speed Machine Applications •Application DataUse the strongest shape and largest nose radius possible. Round and square inserts should be used whenever possible since they are stronger than diamonds and triangles. For heavier cuts, 5/16″ thick inserts are recommended. Use the largest lead angle possible. Use the largest side cutting edge that the shape of the workpiece allows. As the side cutting angle is increased, the length of the cutting edge that contracts the workpiece is increased and the load is distributed over a greater area of the cutting edge. Use proper edge preparation techniques. Proper edge factors in successfully applying ceramics over a wide range of materials and applications. •PCA–2 is Hot Pressed Black CeramicRoughing and finishing of hardened steel and chilled cast irons, and for machining cast irons with sandcast scale. Also clean irons or steel of hardness below 425 BHP or about Rockwell C–45. | Country of Origin | China |
Shipping Info
Package Length
.72000
Package Width
.72000
Package Height
.18000
Package Weight
0.025
