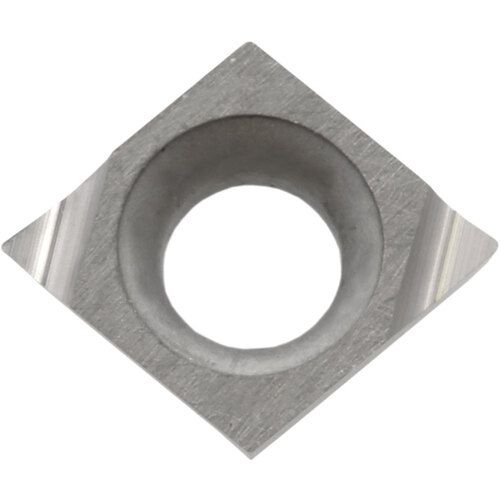

CCGT 110902 F TN60, 0.0039″ Corner Radius, 0.0551″ Thick, 0.1378″ Inscribed Circle, TiCN/NbC, Diamond, Turning Indexable Insert
Turning Insert; Diamond x 0.1378″ IC × 0.0039″ Corner Radius ; TN60 ; Cermet ; | TiCN | NbC |
| Applicable Material | | Steel | | Coating | | TiCN | NbC | |
| Application | External Turning | Facing | Boring | Internal Facing | Sub-Spindle | Grade | TN60 |
| Insert Style | CCGT | Fixing Hole Diameter (D1) | 0.0748″ |
| Corner Radius (RE) | 0.0039″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 110902 | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.0551″ | Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 0.1378″ | Chip Breaker Type | F |
| Cutting Edge Material | Cermet | Shape | Diamond |
Product Features
| Family Description | Alternate Manufacture # CCGT110902LFTN60 | Country of Origin | Japan |
Shipping Info
Package Weight
.0331
