ABW 23-5005 M PR1225, 0.002″ Corner Radius, 0.1563″ Thick, MEGACOAT, Irregular, Turning Indexable Insert
Turning Insert; Irregular ; 0.9213″ Length × 0.002″ Corner Radius ; PR1225 ; Carbide ; MEGACOAT

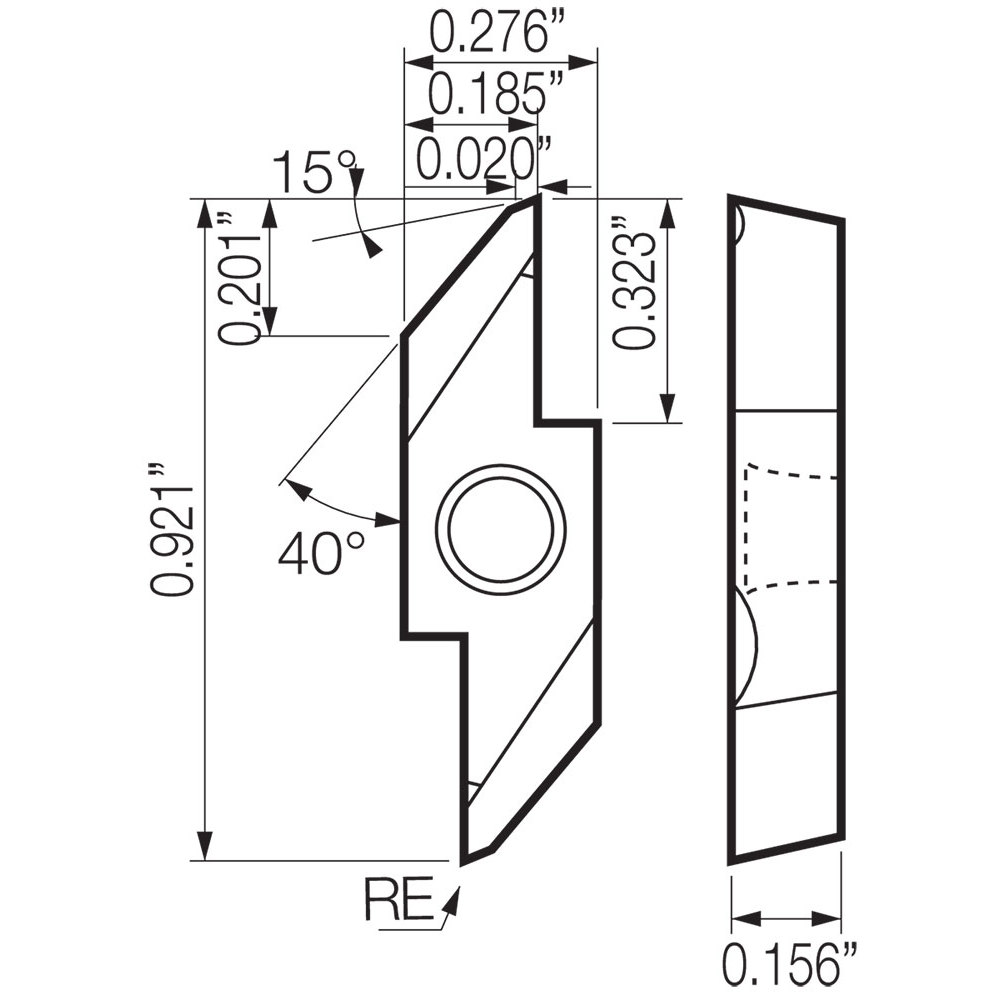

| Applicable Material | | Steel | | Grade | PR1225 |
| Application | Back Turning | Fixing Hole Diameter (D1) | 0.1181″ |
| Insert Style | ABW | Clearance Angle Major (AN) | 15 Degrees |
| Corner Radius (RE) | 0.002″ | Number of Cutting Edges | 2 |
| Insert Size | 23-5005 | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Length (L) | 0.9213″ | Chip Breaker Type | M |
| Insert Thickness (S) | 0.1563″ | Shape | Irregular |
| Cutting Edge Material | Carbide | Series/List # | PR12-Series |
| Coating | MEGACOAT | Insert Width (W1) | 0.2756″ |
Product Features
| Family Description | Alternate Manufacture # ABW23R5005MPR1225 | Country of Origin | Japan |
Shipping Info
Package Weight
.1459
