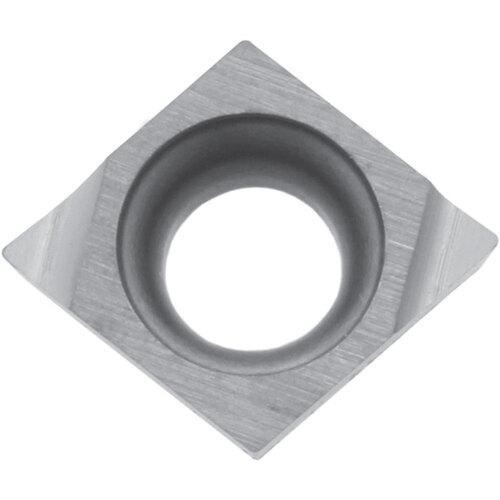

CCET 14111 FSF TN60, 1/64″ Corner Radius, 0.0709″ Thick, 0.1693″ Inscribed Circle, TiCN/NbC, Diamond, Turning Indexable Insert
Turning Insert; Diamond x 0.1693″ IC × 1/64″ Corner Radius ; TN60 ; Cermet ; | TiCN | NbC |
| Applicable Material | | Steel | | Coating | | TiCN | NbC | |
| Application | External Turning | Facing | Boring | Internal Facing | Sub-Spindle | Grade | TN60 |
| Insert Style | CCET | Fixing Hole Diameter (D1) | 0.0906″ |
| Corner Radius (RE) | 1/64″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 14111 | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.0709″ | Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 0.1693″ | Chip Breaker Type | FSF |
| Cutting Edge Material | Cermet | Shape | Diamond |
Product Features
| Family Description | Alternate Manufacture # CCET14111LFSFTN60 | Country of Origin | Japan |
Shipping Info
Package Weight
.0324
