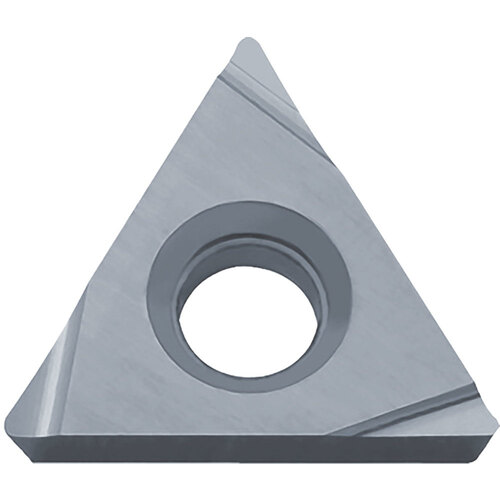

TPGH 2205L TN60 INSERT

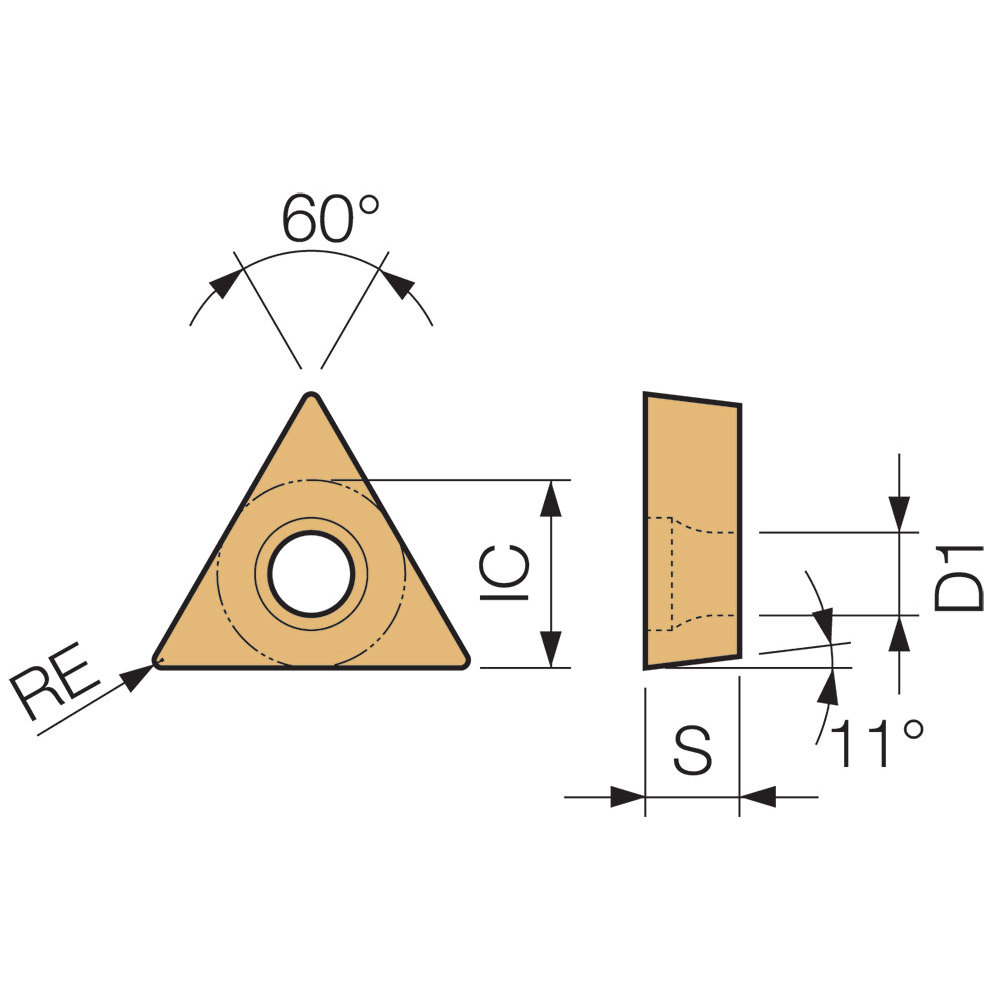

Turning Insert; Triangle x 1/4″ IC × 0.0079″ Corner Radius ; TN60 ; Cermet ; | TiCN | NbC |
| Applicable Material | | Steel | | Coating | | TiCN | NbC | |
| Application | External Turning | Boring | Internal Facing | Copying | Back Boring | Grade | TN60 |
| Insert Style | TPGH | Fixing Hole Diameter (D1) | 0.1299″ |
| Corner Radius (RE) | 0.0079″ | Clearance Angle Major (AN) | 11 Degrees |
| Insert Size | 2205 | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 1/8″ | Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 1/4″ | Shape | Triangle |
| Cutting Edge Material | Cermet |
Product Features
| Family Description | Alternate Manufacture # TPGH2205LTN60 | Country of Origin | Japan |
Shipping Info
Package Weight
.0441
