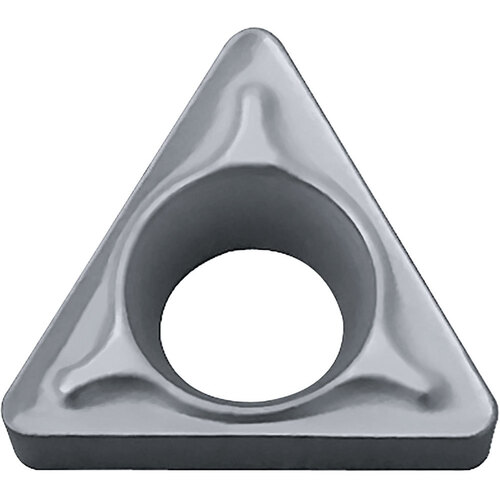

TBMT 12105 DP TN60, 0.0079″ Corner Radius, 1/16″ Thick, 5/32″ Inscribed Circle, TiCN/NbC, Triangle, Turning Indexable Insert
Turning Insert; Triangle x 5/32″ IC × 0.0079″ Corner Radius ; TN60 ; Cermet ; | TiCN | NbC |
| Applicable Material | | Steel | | Coating | | TiCN | NbC | |
| Application | Boring | Internal Facing | Copying | Back Boring | Grade | TN60 |
| Insert Style | TBMT | Fixing Hole Diameter (D1) | 0.0906″ |
| Corner Radius (RE) | 0.0079″ | Clearance Angle Major (AN) | 5 Degrees |
| Insert Size | 12105 | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 1/16″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 5/32″ | Chip Breaker Type | DP |
| Cutting Edge Material | Cermet | Shape | Triangle |
Product Features
| Family Description | Alternate Manufacture # TBMT12105DPTN60 | Country of Origin | Japan |
Shipping Info
Package Weight
.0331
