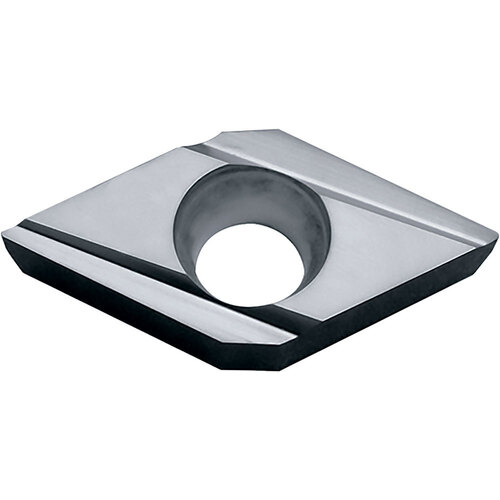

DCGT 32505 E-J TN60, 0.0079″ Corner Radius, 5/32″ Thick, 3/8″ Inscribed Circle, TiCN/NbC, Diamond, Turning Indexable Insert
Turning Insert; Diamond x 3/8″ IC × 0.0079″ Corner Radius ; TN60 ; Cermet ; | TiCN | NbC |
| Applicable Material | | Steel | | Coating | | TiCN | NbC | |
| Application | External Turning | Copying | Back Boring | Sub-Spindle | Grade | TN60 |
| Insert Style | DCGT | Fixing Hole Diameter (D1) | 0.1732″ |
| Corner Radius (RE) | 0.0079″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 32505 | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 5/32″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | E-J |
| Cutting Edge Material | Cermet | Shape | Diamond |
Product Features
| Family Description | Alternate Manufacture # DCGT32505ERJTN60 | Country of Origin | Japan |
Shipping Info
Package Weight
.0766
