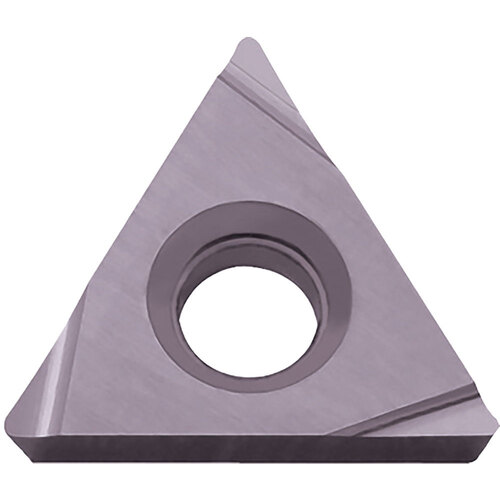

TPGH 221L PV7005 INSERT
Turning Insert; Triangle x 1/4″ IC × 1/64″ Corner Radius ; PV7005 ; Cermet ; | TiN | TiCN |
| Applicable Material | | Cast Iron | | Coating | | TiN | TiCN | |
| Application | External Turning | Boring | Internal Facing | Copying | Back Boring | Grade | PV7005 |
| Insert Style | TPGH | Fixing Hole Diameter (D1) | 0.1299″ |
| Corner Radius (RE) | 1/64″ | Clearance Angle Major (AN) | 11 Degrees |
| Insert Size | 221 | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 1/8″ | Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 1/4″ | Shape | Triangle |
| Cutting Edge Material | Cermet |
Product Features
| Family Description | Alternate Manufacture # TPGH221LPV7005 | Country of Origin | Japan |
Shipping Info
Package Weight
.0448
