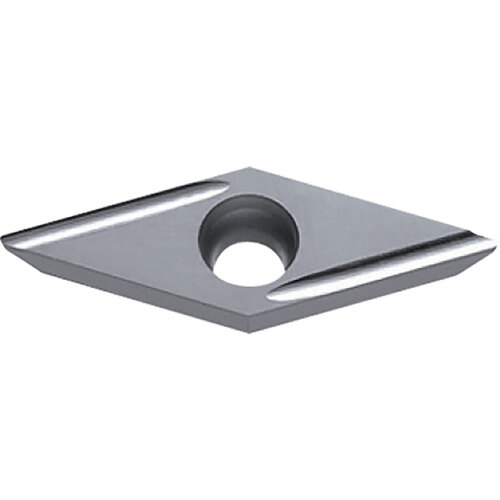

VPET 151505 F-USF TN60, 0.0079″ Corner Radius, 3/32″ Thick, 3/16″ Inscribed Circle, TiCN/NbC, Diamond, Turning Indexable Insert
Turning Insert; Diamond x 3/16″ IC × 0.0079″ Corner Radius ; TN60 ; Cermet ; | TiCN | NbC |
| Applicable Material | | Steel | | Coating | | TiCN | NbC | |
| Application | External Turning | Copying | Facing | Undercutting | Profiling | Internal Facing | Back Boring | Grade | TN60 |
| Insert Style | VPET | Fixing Hole Diameter (D1) | 0.0906″ |
| Corner Radius (RE) | 0.0079″ | Clearance Angle Major (AN) | 11 Degrees |
| Insert Size | 151505 | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 3/32″ | Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 3/16″ | Chip Breaker Type | F-USF |
| Cutting Edge Material | Cermet | Shape | Diamond |
Product Features
| Family Description | Alternate Manufacture # VPET151505FLUSFTN60 | Country of Origin | Japan |
Shipping Info
Package Weight
.0412
