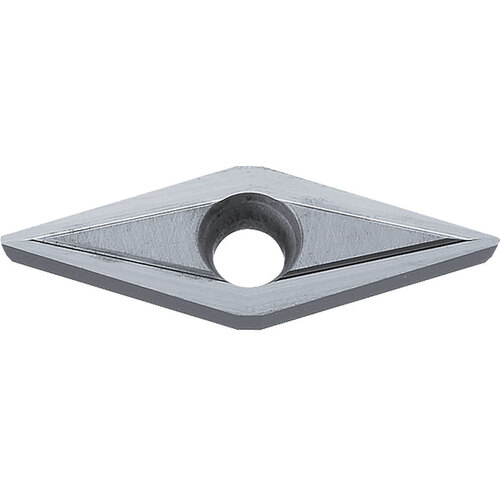

VBGT 221 FN-Z TN60, 1/64″ Corner Radius, 1/8″ Thick, 1/4″ Inscribed Circle, TiCN/NbC, Diamond, Turning Indexable Insert
Turning Insert; Diamond x 1/4″ IC × 1/64″ Corner Radius ; TN60 ; Cermet ; | TiCN | NbC |
| Applicable Material | | Steel | | Coating | | TiCN | NbC | |
| Application | External Turning | Copying | Facing | Undercutting | Profiling | Internal Facing | Back Boring | Grade | TN60 |
| Insert Style | VBGT | Fixing Hole Diameter (D1) | 0.1102″ |
| Corner Radius (RE) | 1/64″ | Clearance Angle Major (AN) | 5 Degrees |
| Insert Size | 221 | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 1/8″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/4″ | Chip Breaker Type | FN-Z |
| Cutting Edge Material | Cermet | Shape | Diamond |
Product Features
| Family Description | Alternate Manufacture # VBGT221FNZTN60 | Country of Origin | Japan |
Shipping Info
Package Weight
.0560
