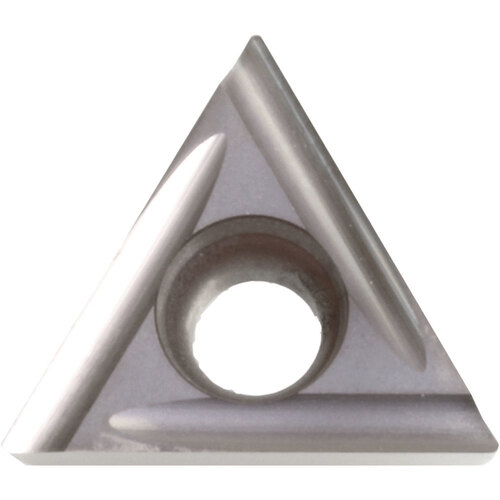

TPET 2202 F-USF TN60, 0.0039″ Corner Radius, 1/8″ Thick, 1/4″ Inscribed Circle, TiCN/NbC, Triangle, Turning Indexable Insert
Turning Insert; Triangle x 1/4″ IC × 0.0039″ Corner Radius ; TN60 ; Cermet ; | TiCN | NbC |
| Applicable Material | | Steel | | Coating | | TiCN | NbC | |
| Application | External Turning | Boring | Internal Facing | Copying | Back Boring | Grade | TN60 |
| Insert Style | TPET | Fixing Hole Diameter (D1) | 0.1299″ |
| Corner Radius (RE) | 0.0039″ | Clearance Angle Major (AN) | 11 Degrees |
| Insert Size | 2202 | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 1/8″ | Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 1/4″ | Chip Breaker Type | F-USF |
| Cutting Edge Material | Cermet | Shape | Triangle |
Product Features
| Family Description | Alternate Manufacture # TPET2202FLUSFTN60 | Country of Origin | Japan |
Shipping Info
Package Weight
.0661
