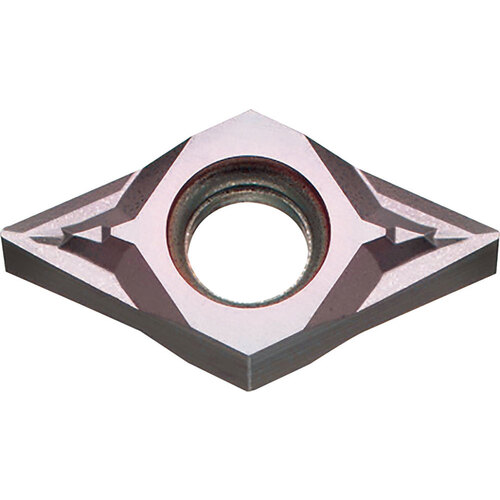

DNGU 2221 MFP-SK PR1225, 1/64″ Corner Radius, 1/8″ Thick, 0.2756″ Inscribed Circle, MEGACOAT, Diamond, Turning Indexable Insert
Turning Insert; Diamond x 0.2756″ IC × 1/64″ Corner Radius ; PR1225 ; Carbide ; MEGACOAT

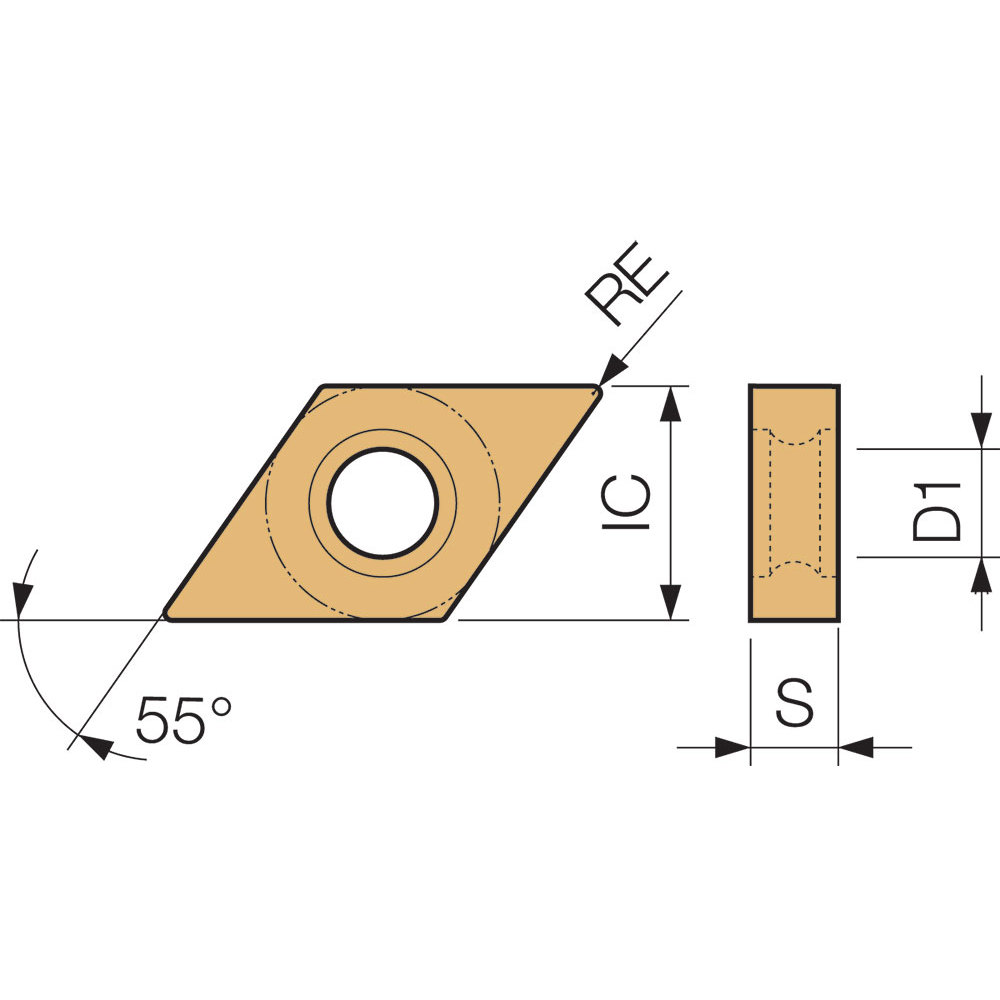

| Applicable Material | | Steel | | Grade | PR1225 |
| Application | External Turning | Copying | Fixing Hole Diameter (D1) | 0.1417″ |
| Insert Style | DNGU | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 1/64″ | Number of Cutting Edges | 4 |
| Insert Size | 2221 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/8″ | Chip Breaker Type | MFP-SK |
| Inscribed Circle Diameter (IC) | 0.2756″ | Shape | Diamond |
| Cutting Edge Material | Carbide | Series/List # | PR12-Series |
| Coating | MEGACOAT |
Product Features
| Family Description | Alternate Manufacture # DNGU2221MFPSKPR1225 | Country of Origin | Japan |
Shipping Info
Package Weight
.0754
