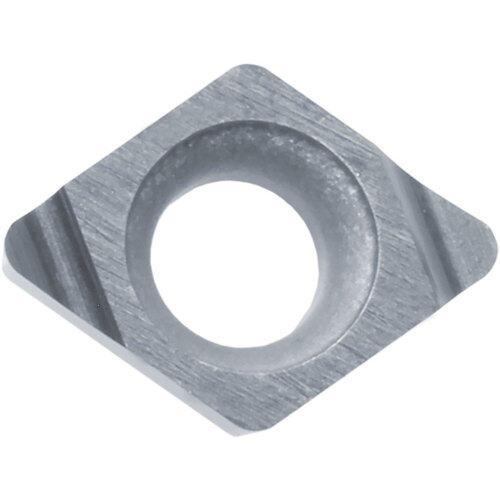

JCET 110905 FSF TN60, 0.0079″ Corner Radius, 0.0551″ Thick, 0.1378″ Inscribed Circle, TiCN/NbC, Diamond, Turning Indexable Insert
| Applicable Material | | Steel | | Coating | | TiCN | NbC | |
| Application | Boring | Internal Facing | Back Boring | Grade | TN60 |

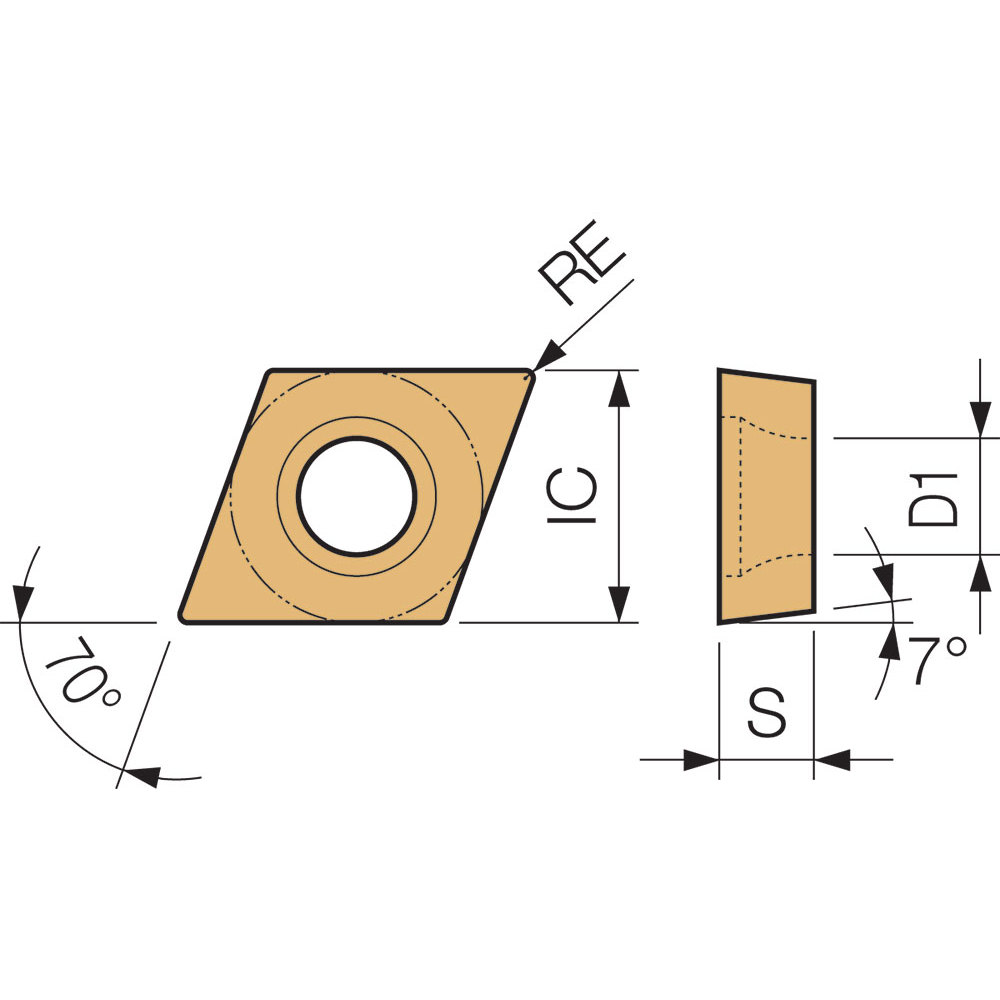

| Insert Style | JCET | Fixing Hole Diameter (D1) | 0.0748″ |
| Corner Radius (RE) | 0.0079″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 110905 | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.0551″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 0.1378″ | Chip Breaker Type | FSF |
| Cutting Edge Material | Cermet | Shape | Diamond |
Product Features
| Family Description | Alternate Manufacture # JCET110905RFSFTN60 | Country of Origin | Japan |
Shipping Info
Package Weight
.0459
