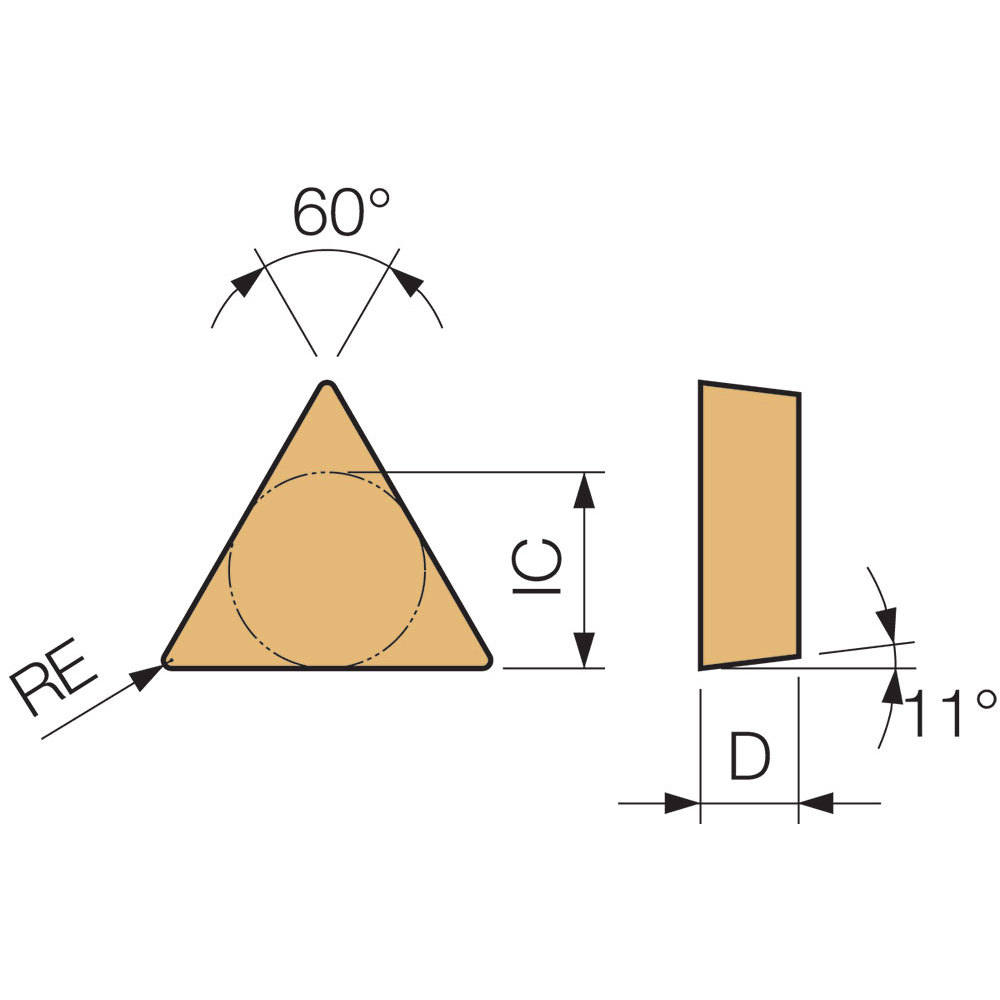

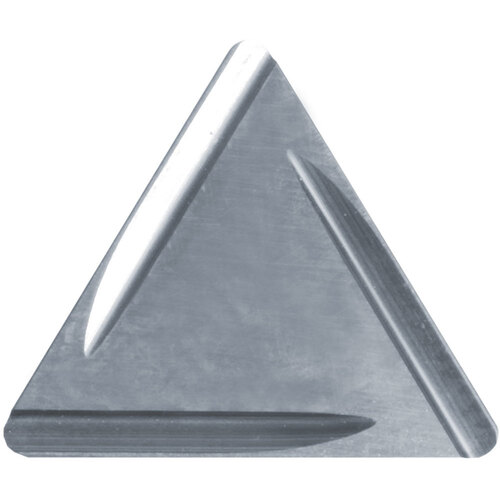

TPGR 321 B TN60, 1/64″ Corner Radius, 1/8″ Thick, 3/8″ Inscribed Circle, TiCN/NbC, Triangle, Turning Indexable Insert
Turning Insert; Triangle x 3/8″ IC × 1/64″ Corner Radius ; TN60 ; Cermet ; | TiCN | NbC |
| Applicable Material | | Steel | | Coating | | TiCN | NbC | |
| Application | External Turning | Boring | Internal Facing | Copying | Back Boring | Grade | TN60 |
| Insert Style | TPGR | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 1/64″ | Number of Cutting Edges | 3 |
| Insert Size | 321 | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 1/8″ | Chip Breaker Type | B |
| Inscribed Circle Diameter (IC) | 3/8″ | Shape | Triangle |
| Cutting Edge Material | Cermet |
Product Features
| Family Description | Alternate Manufacture # TPGR321RBTN60 | Country of Origin | S.Korea |
Shipping Info
Package Weight
.0763
