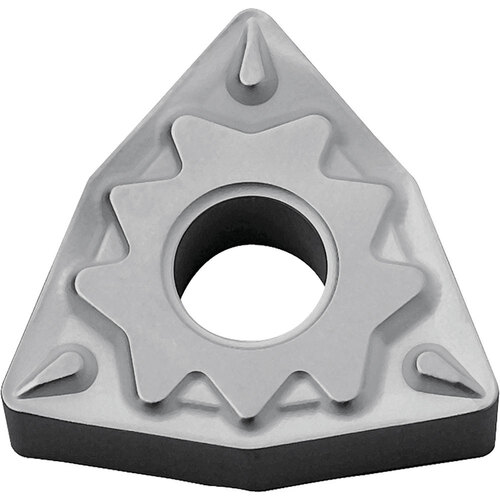

WNMG 332 HQ TN60, 1/32″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, TiCN/NbC, Trigon, Turning Indexable Insert
Turning Insert; Trigon x 3/8″ IC × 1/32″ Corner Radius ; TN60 ; Cermet ; | TiCN | NbC |
| Applicable Material | | Steel | | Coating | | TiCN | NbC | |
| Application | External Turning | Facing | Boring | Internal Facing | Grade | TN60 |
| Insert Style | WNMG | Fixing Hole Diameter (D1) | 0.15″ |
| Corner Radius (RE) | 1/32″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 332 | Number of Cutting Edges | 6 |
| Insert Thickness (S) | 3/16″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | HQ |
| Cutting Edge Material | Cermet | Shape | Trigon |
Product Features
| Family Description | Alternate Manufacture # WNMG332HQTN60 | Country of Origin | Japan |
Shipping Info
Package Weight
.0862
