VBGW 3305 ME KBN510, 0.0079″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, Diamond, Turning Indexable Insert
Turning Insert; Diamond x 3/8″ IC × 0.0079″ Corner Radius ; KBN510 ; CBN

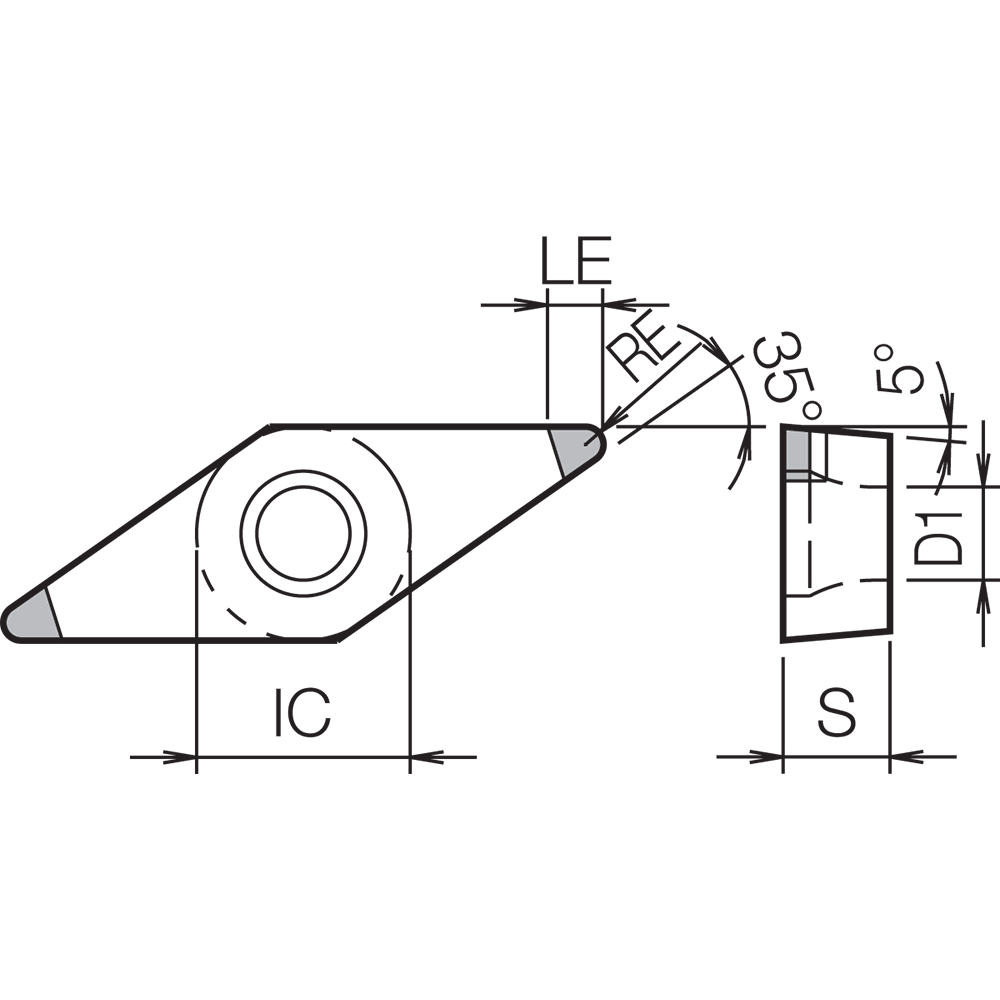

| Applicable Material | | Hard Materials | | Grade | KBN510 |
| Application | External Turning | Copying | Facing | Undercutting | Profiling | Internal Facing | Back Boring | Fixing Hole Diameter (D1) | 0.1732″ |
| Insert Style | VBGW | Clearance Angle Major (AN) | 5 Degrees |
| Corner Radius (RE) | 0.0079″ | Number of Cutting Edges | 2 |
| Insert Size | 3305 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ | Chip Breaker Type | ME |
| Inscribed Circle Diameter (IC) | 3/8″ | Shape | Diamond |
| Cutting Edge Material | CBN |
Product Features
| Family Description | Alternate Manufacture # VBGW3305MEKBN510 | Country of Origin | Japan |
Shipping Info
Package Weight
.0399
