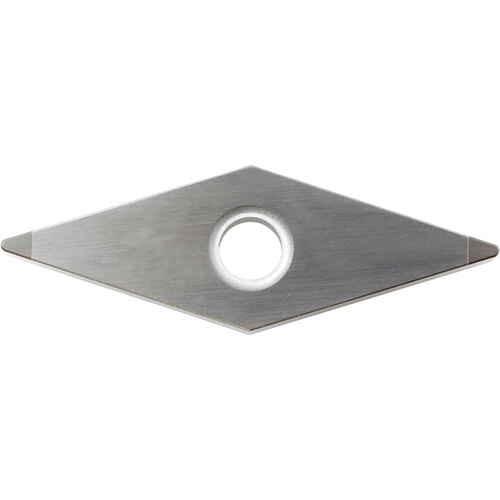

VNGA 331 MET KBN525, 1/64″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, Diamond, Turning Indexable Insert
Turning Insert; Diamond x 3/8″ IC × 1/64″ Corner Radius ; KBN525 ; CBN

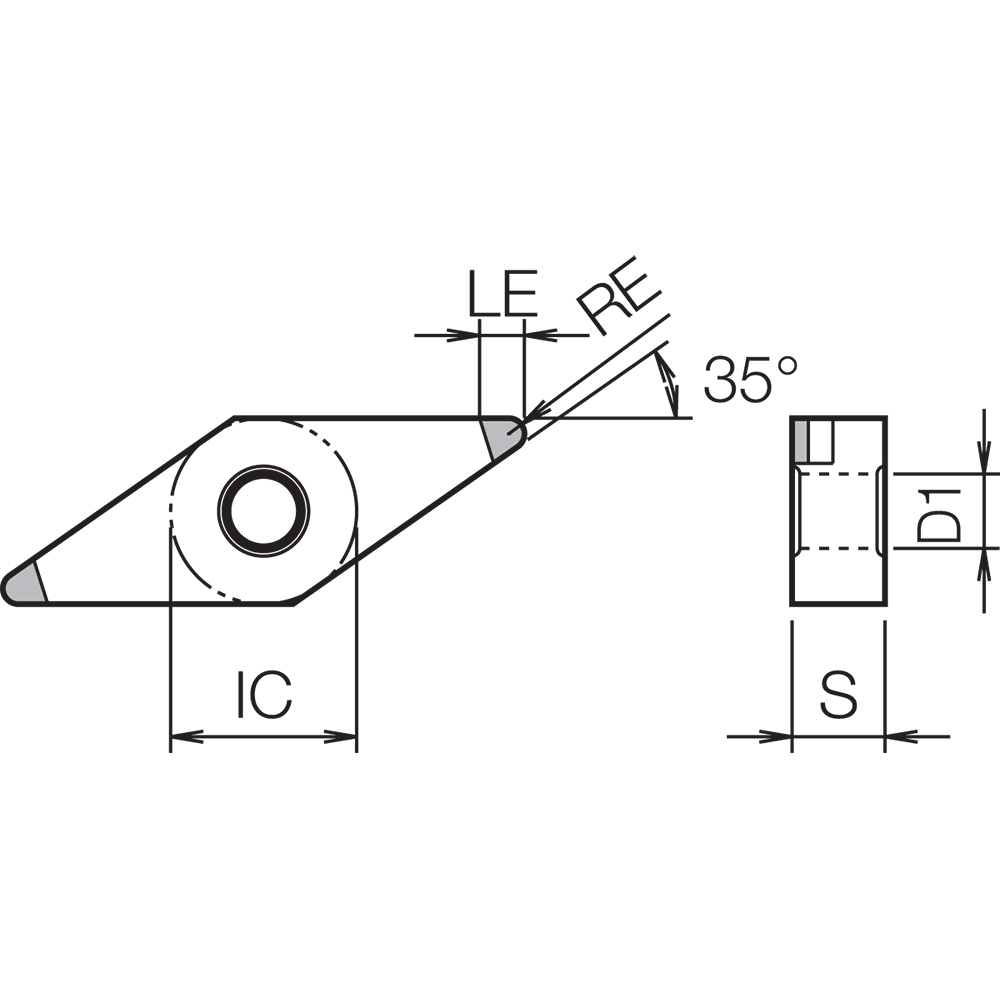

| Applicable Material | | Hard Materials | | Grade | KBN525 |
| Application | External Turning | Copying | Facing | Undercutting | Fixing Hole Diameter (D1) | 0.15″ |
| Insert Style | VNGA | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 1/64″ | Number of Cutting Edges | 2 |
| Insert Size | 331 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ | Chip Breaker Type | MET |
| Inscribed Circle Diameter (IC) | 3/8″ | Shape | Diamond |
| Cutting Edge Material | CBN |
Product Features
| Family Description | Alternate Manufacture # VNGA331METKBN525 | Country of Origin | China |
Shipping Info
Package Weight
.0432
