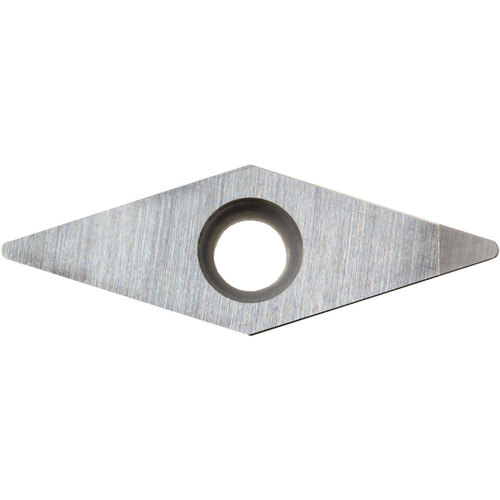

VBGW 221 SET KBN525, 1/64″ Corner Radius, 1/8″ Thick, 1/4″ Inscribed Circle, Diamond, Turning Indexable Insert
Turning Insert; Diamond x 1/4″ IC × 1/64″ Corner Radius ; KBN525 ; CBN
| Applicable Material | | Hard Materials | | Grade | KBN525 |

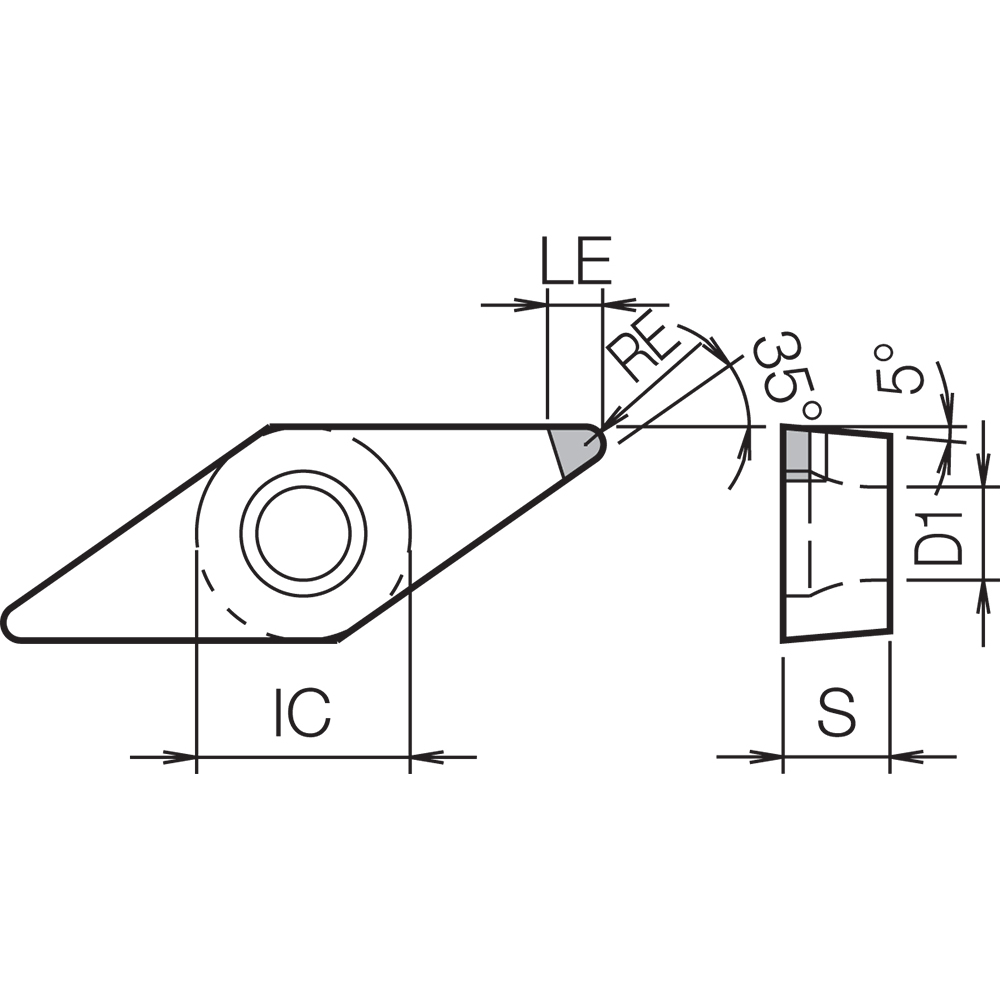

| Application | External Turning | Copying | Facing | Undercutting | Profiling | Internal Facing | Back Boring | Fixing Hole Diameter (D1) | 0.1102″ |
| Insert Style | VBGW | Clearance Angle Major (AN) | 5 Degrees |
| Corner Radius (RE) | 1/64″ | Number of Cutting Edges | 1 |
| Insert Size | 221 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/8″ | Chip Breaker Type | SET |
| Inscribed Circle Diameter (IC) | 1/4″ | Shape | Diamond |
| Cutting Edge Material | CBN |
Product Features
| Family Description | Alternate Manufacture # VBGW221SETKBN525 | Country of Origin | Japan |
Shipping Info
Package Weight
.0269
