VNMM 331MSE KPD010 INSERT

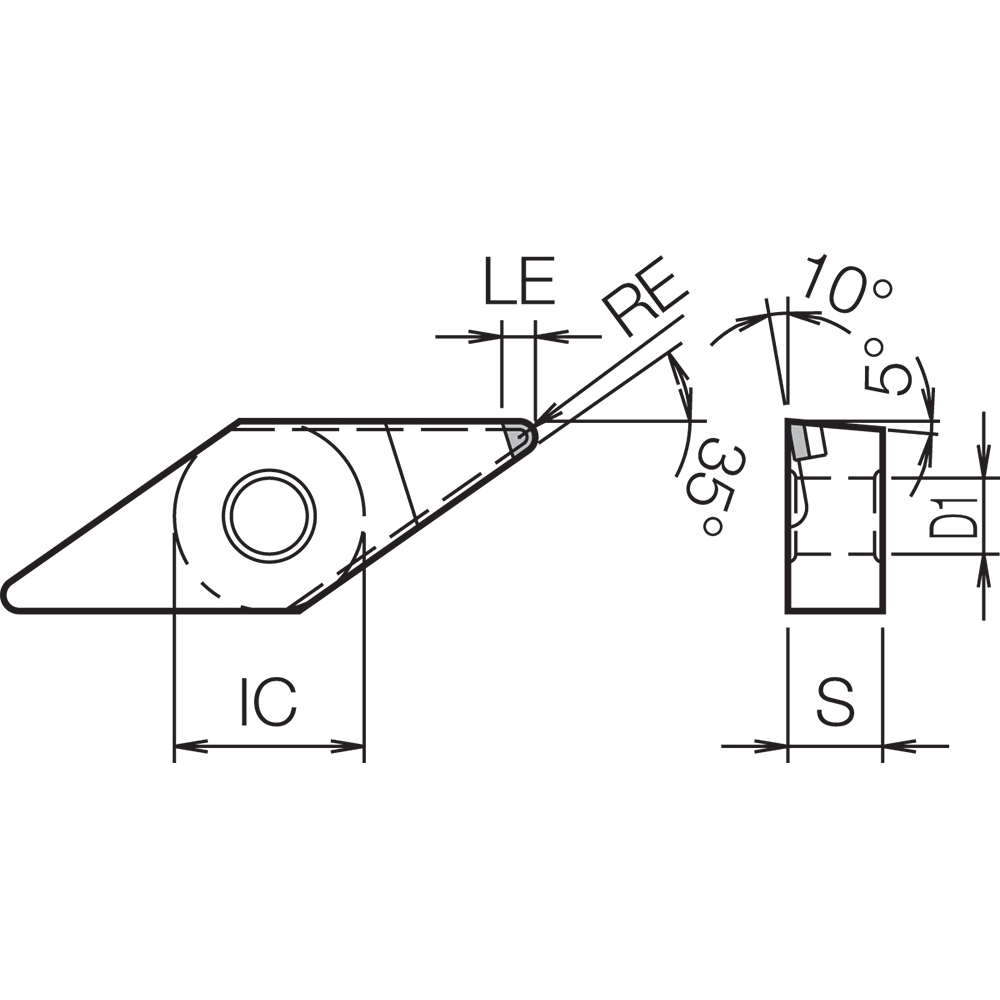

Turning Insert; Diamond x 9.53 mm IC × 0.4 mm Corner Radius ; KPD010 ; PCD
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | KPD010 |
| Application | External Turning | Copying | Facing | Undercutting | Fixing Hole Diameter (D1) | 3.81 mm |
| Insert Style | VNMM | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 0.4 mm | Number of Cutting Edges | 1 |
| Insert Size | 331 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 4.76 mm | Chip Breaker Type | MSE |
| Inscribed Circle Diameter (IC) | 9.53 mm | Shape | Diamond |
| Cutting Edge Material | PCD |
Product Features
| Family Description | Alternate Manufacture # VNMM331MSEKPD010 | Country of Origin | China |
Shipping Info
Package Weight
.0414
