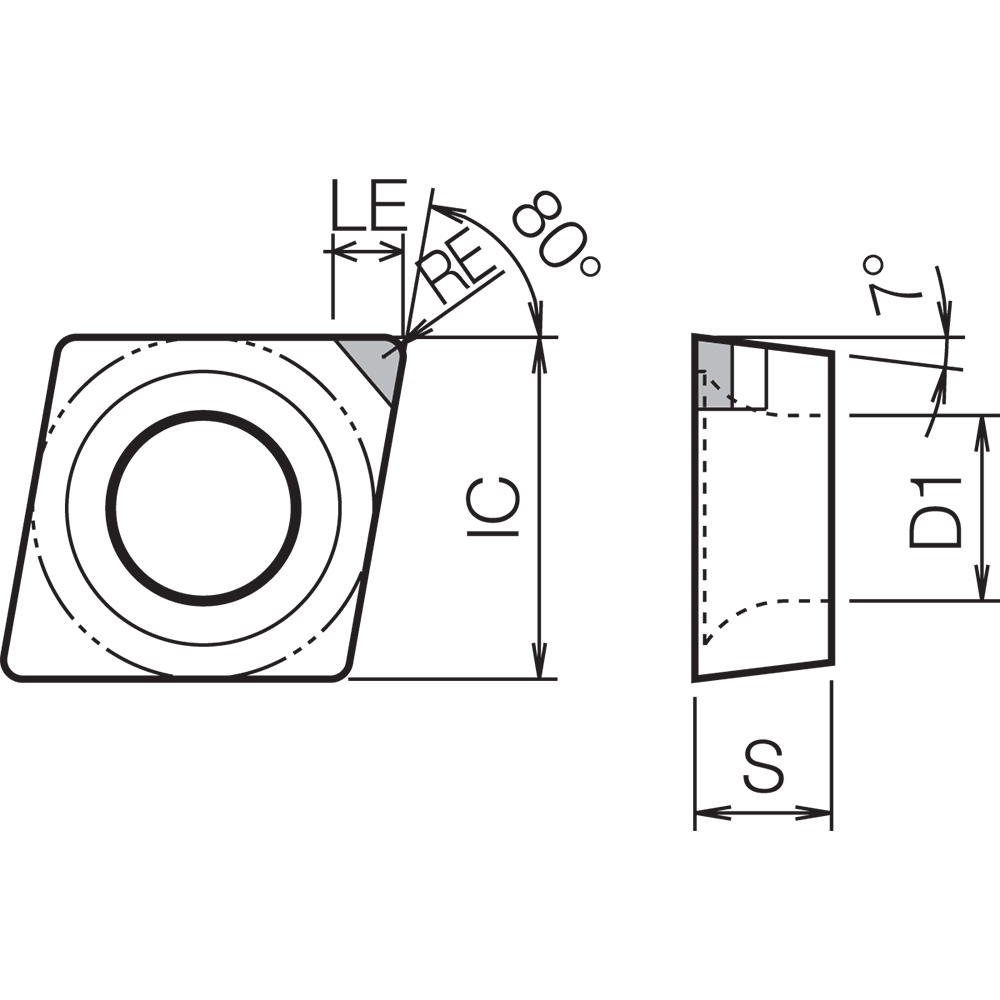

CCMW 14111 SET KBN25M, 1/64″ Corner Radius, 0.0709″ Thick, 0.1693″ Inscribed Circle, MEGACOAT, Diamond, Turning Indexable Insert
Turning Insert; Diamond x 0.1693″ IC × 1/64″ Corner Radius ; KBN25M ; CBN ; MEGACOAT
| Applicable Material | | Hard Materials | | Coating | MEGACOAT |
| Application | External Turning | Facing | Boring | Internal Facing | Grade | KBN25M |
| Insert Style | CCMW | Fixing Hole Diameter (D1) | 0.0906″ |
| Corner Radius (RE) | 1/64″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 14111 | Number of Cutting Edges | 1 |
| Insert Thickness (S) | 0.0709″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 0.1693″ | Chip Breaker Type | SET |
| Cutting Edge Material | CBN | Shape | Diamond |
Product Features
| Family Description | Alternate Manufacture # CCMW14111S00435SETKBN25M | Country of Origin | China |
Shipping Info
Package Weight
.0218
