DCMW 2151 SE KBN25M, 1/64″ Corner Radius, 3/32″ Thick, 1/4″ Inscribed Circle, MEGACOAT, Diamond, Turning Indexable Insert
Turning Insert; Diamond x 1/4″ IC × 1/64″ Corner Radius ; KBN25M ; CBN ; MEGACOAT

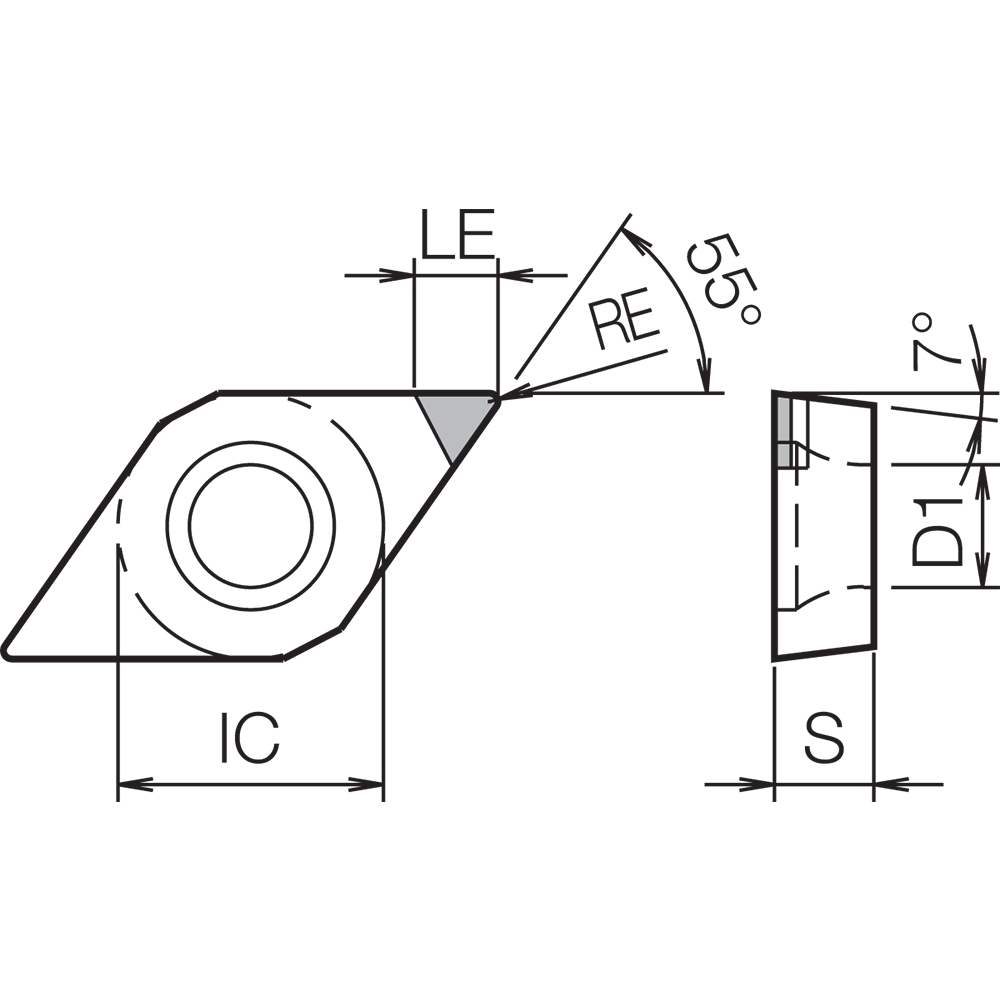

| Applicable Material | | Hard Materials | | Coating | MEGACOAT |
| Application | External Turning | Copying | Back Boring | Grade | KBN25M |
| Insert Style | DCMW | Fixing Hole Diameter (D1) | 0.1102″ |
| Corner Radius (RE) | 1/64″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 2151 | Number of Cutting Edges | 1 |
| Insert Thickness (S) | 3/32″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/4″ | Chip Breaker Type | SE |
| Cutting Edge Material | CBN | Shape | Diamond |
Product Features
| Family Description | Alternate Manufacture # DCMW2151T00315SEKBN25M | Country of Origin | Ireland |
Shipping Info
Package Weight
.0238
