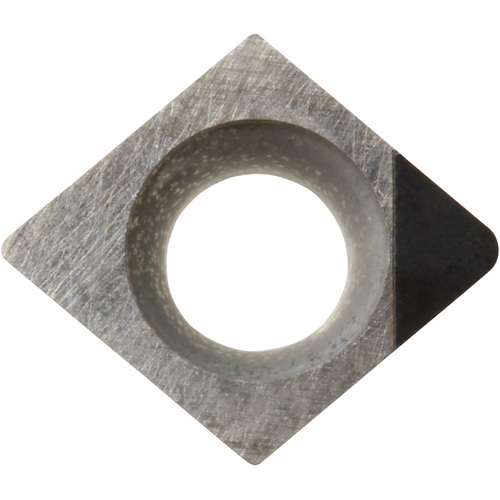

CCGW 3252 NE KPD001, 1/32″ Corner Radius, 5/32″ Thick, 3/8″ Inscribed Circle, Diamond, Turning Indexable Insert
Turning Insert; Diamond x 3/8″ IC × 1/32″ Corner Radius ; KPD001 ; PCD

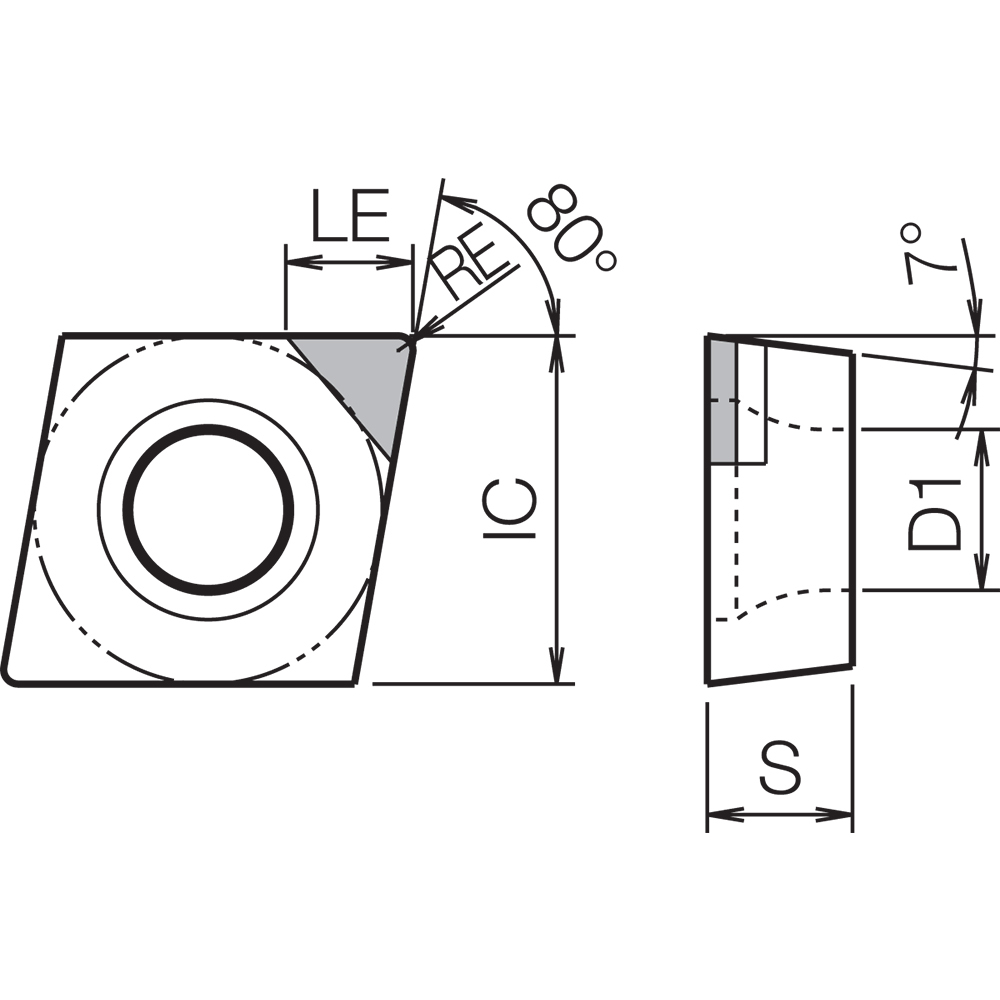

| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | KPD001 |
| Application | External Turning | Facing | Boring | Internal Facing | Fixing Hole Diameter (D1) | 0.1732″ |
| Insert Style | CCGW | Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 1/32″ | Number of Cutting Edges | 1 |
| Insert Size | 3252 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 5/32″ | Chip Breaker Type | NE |
| Inscribed Circle Diameter (IC) | 3/8″ | Shape | Diamond |
| Cutting Edge Material | PCD |
Product Features
| Family Description | Alternate Manufacture # CCGW3252NEKPD001 | Country of Origin | Japan |
Shipping Info
Package Weight
.0289
