VCGW 15151 ME KBN05M, 1/64″ Corner Radius, 3/32″ Thick, 3/16″ Inscribed Circle, MEGACOAT, Diamond, Turning Indexable Insert
Turning Insert; Diamond x 3/16″ IC × 1/64″ Corner Radius ; KBN05M ; CBN ; MEGACOAT
| Applicable Material | | Hard Materials | | Coating | MEGACOAT |
| Application | External Turning | Copying | Facing | Undercutting | Profiling | Internal Facing | Back Boring | Grade | KBN05M |

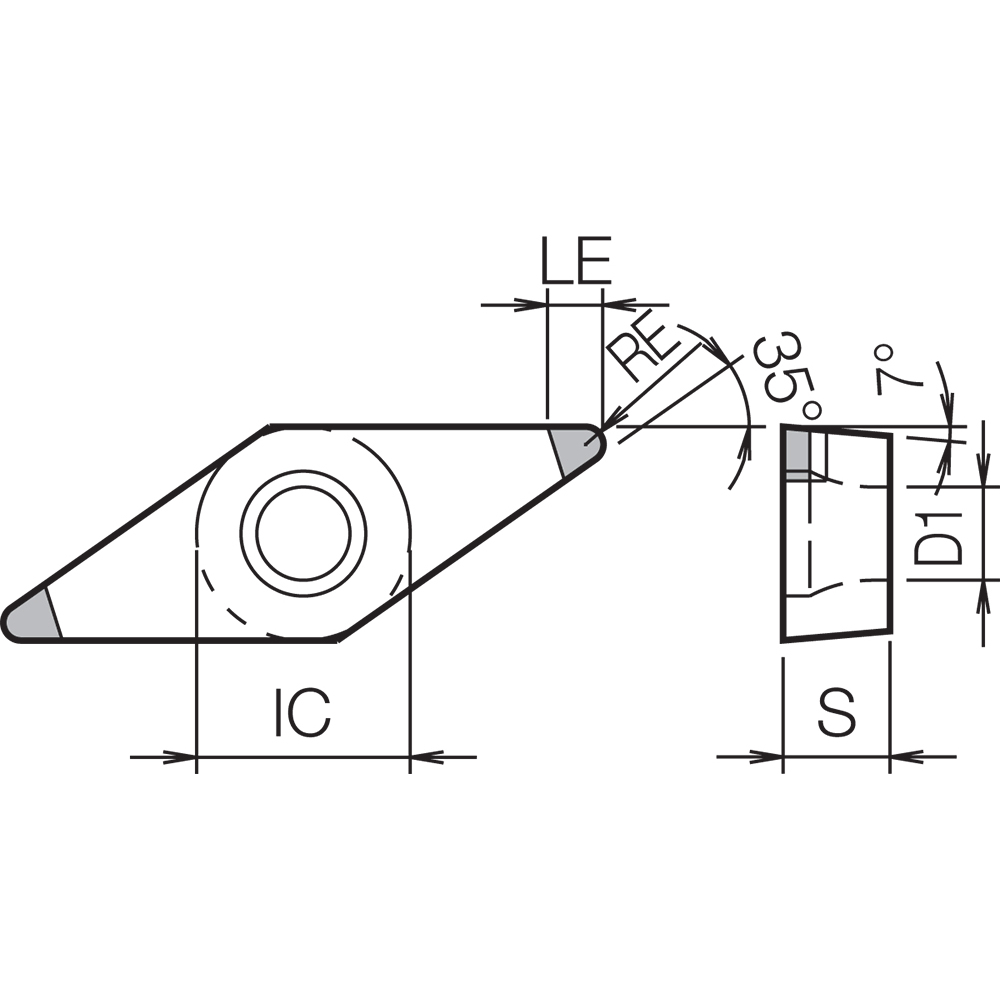

| Insert Style | VCGW | Fixing Hole Diameter (D1) | 0.0906″ |
| Corner Radius (RE) | 1/64″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 15151 | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 3/32″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/16″ | Chip Breaker Type | ME |
| Cutting Edge Material | CBN | Shape | Diamond |
Product Features
| Family Description | Alternate Manufacture # VCGW15151T00315MEKBN05M | Country of Origin | Japan |
Shipping Info
Package Weight
.0234
