TPGB 221 MES KBN05M, 1/64″ Corner Radius, 1/8″ Thick, 1/4″ Inscribed Circle, MEGACOAT, Triangle, Turning Indexable Insert
Turning Insert; Triangle x 1/4″ IC × 1/64″ Corner Radius ; KBN05M ; CBN ; MEGACOAT
| Applicable Material | | Hard Materials | | Coating | MEGACOAT |
| Application | External Turning | Boring | Internal Facing | Copying | Back Boring | Grade | KBN05M |

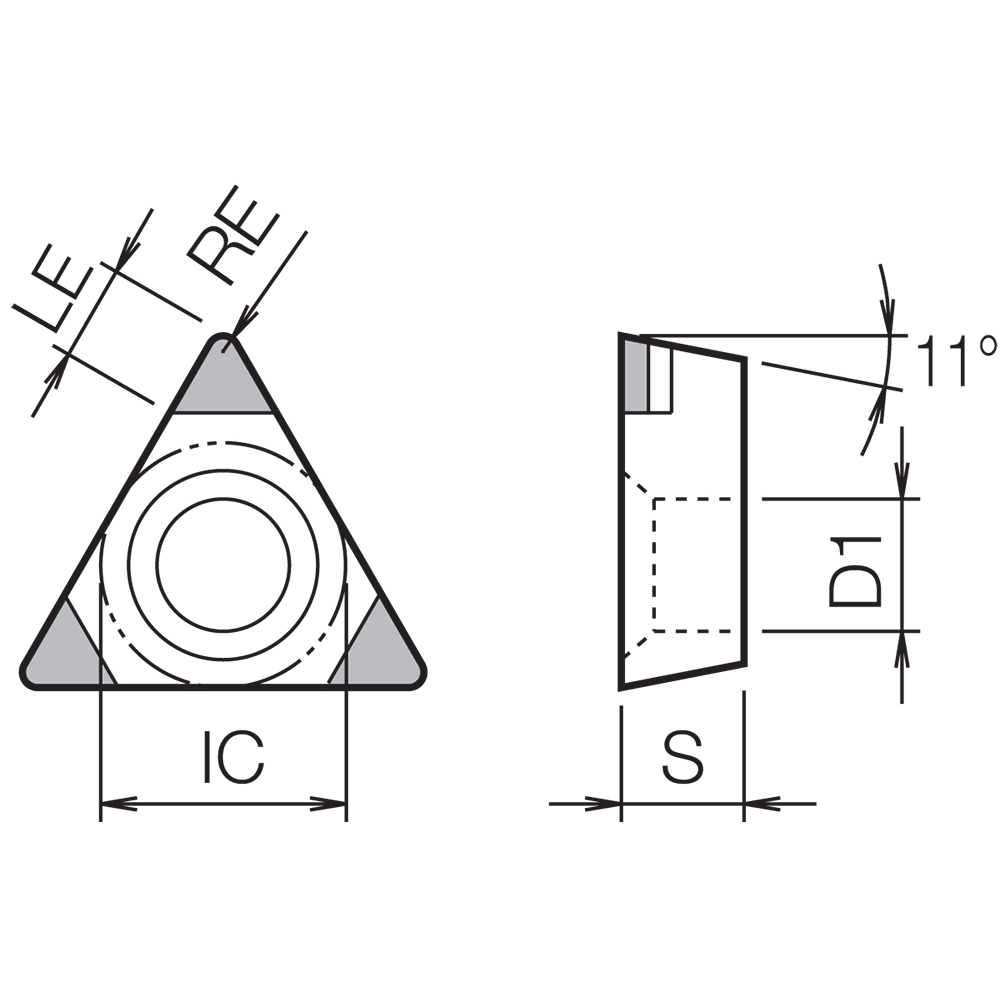

| Insert Style | TPGB | Fixing Hole Diameter (D1) | 0.1299″ |
| Corner Radius (RE) | 1/64″ | Clearance Angle Major (AN) | 11 Degrees |
| Insert Size | 221 | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 1/8″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/4″ | Chip Breaker Type | MES |
| Cutting Edge Material | CBN | Shape | Triangle |
Product Features
| Family Description | Alternate Manufacture # TPGB221S00525MESKBN05M | Country of Origin | Japan |
Shipping Info
Package Weight
.0243
