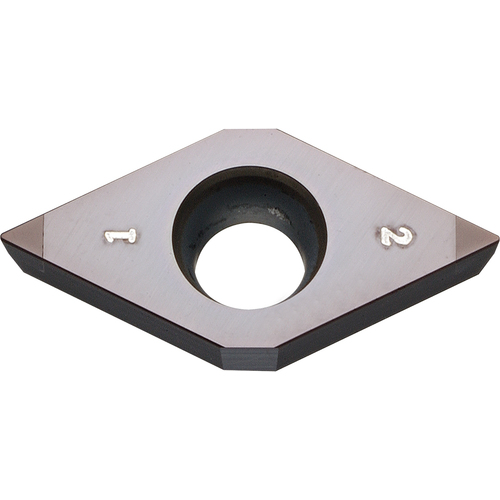

DCMW 32505 MES KBN05M, 0.0079″ Corner Radius, 5/32″ Thick, 3/8″ Inscribed Circle, MEGACOAT, Diamond, Turning Indexable Insert
Turning Insert; Diamond x 3/8″ IC × 0.0079″ Corner Radius ; KBN05M ; CBN ; MEGACOAT
| Applicable Material | | Hard Materials | | Coating | MEGACOAT |
| Application | External Turning | Copying | Back Boring | Grade | KBN05M |

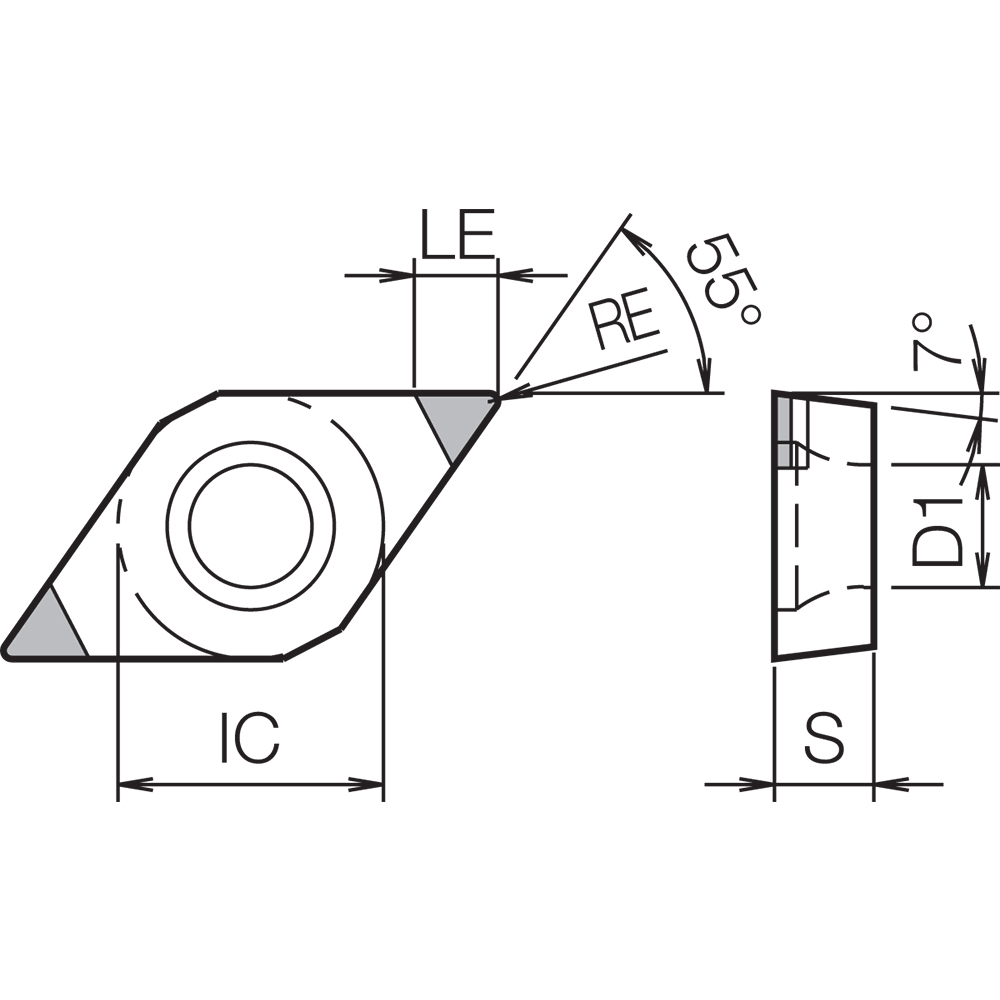

| Insert Style | DCMW | Fixing Hole Diameter (D1) | 0.1732″ |
| Corner Radius (RE) | 0.0079″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 32505 | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 5/32″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | MES |
| Cutting Edge Material | CBN | Shape | Diamond |
Product Features
| Family Description | Alternate Manufacture # DCMW32505S00525MESKBN05M | Country of Origin | Japan |
Shipping Info
Package Weight
.0295
