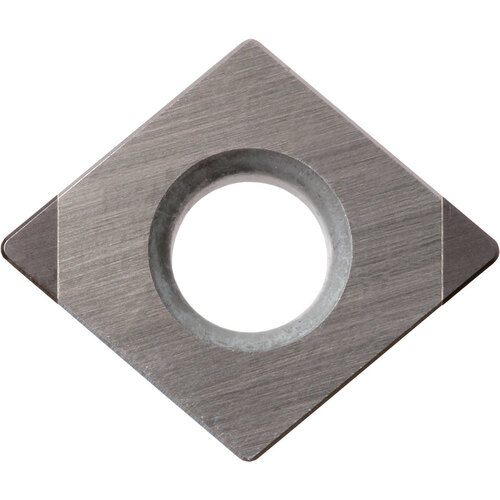

CPGB 322 MET KBN05M, 1/32″ Corner Radius, 1/8″ Thick, 3/8″ Inscribed Circle, MEGACOAT, Diamond, Turning Indexable Insert
Turning Insert; Diamond x 3/8″ IC × 1/32″ Corner Radius ; KBN05M ; CBN ; MEGACOAT
| Applicable Material | | Hard Materials | | Coating | MEGACOAT |
| Application | Boring | Internal Facing | Grade | KBN05M |

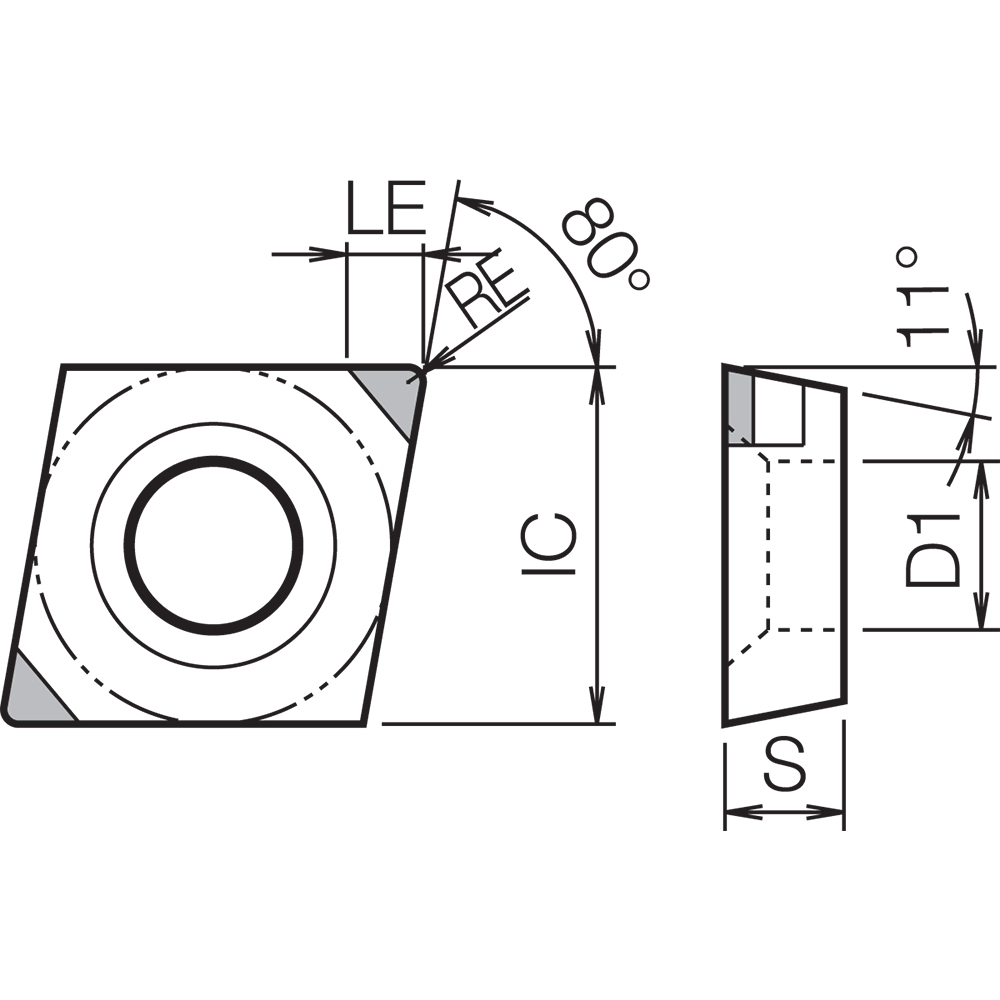

| Insert Style | CPGB | Fixing Hole Diameter (D1) | 0.1772″ |
| Corner Radius (RE) | 1/32″ | Clearance Angle Major (AN) | 11 Degrees |
| Insert Size | 322 | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 1/8″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | MET |
| Cutting Edge Material | CBN | Shape | Diamond |
Product Features
| Family Description | Alternate Manufacture # CPGB322S00435METKBN05M | Country of Origin | Japan |
Shipping Info
Package Weight
.0280
