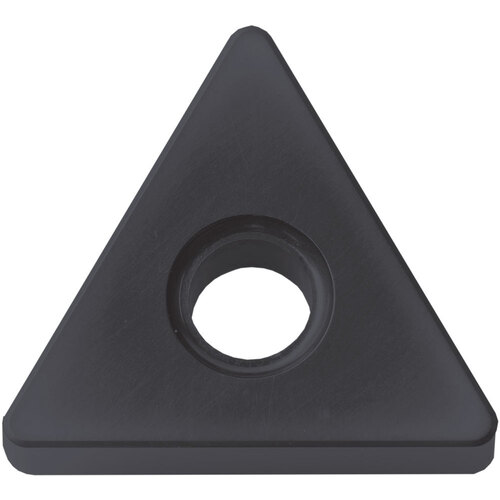

TNGA 331T00825 A65 INSERT
Turning Insert; Triangle x 3/8″ IC × 1/64″ Corner Radius ; A65 ; Ceramic ; | Al2O3 | TiC |
| Applicable Material | | Cast Iron | | Coating | | Al2O3 | TiC | |
| Application | External Turning | Facing | Copying | Chamfering | Boring | Grade | A65 |

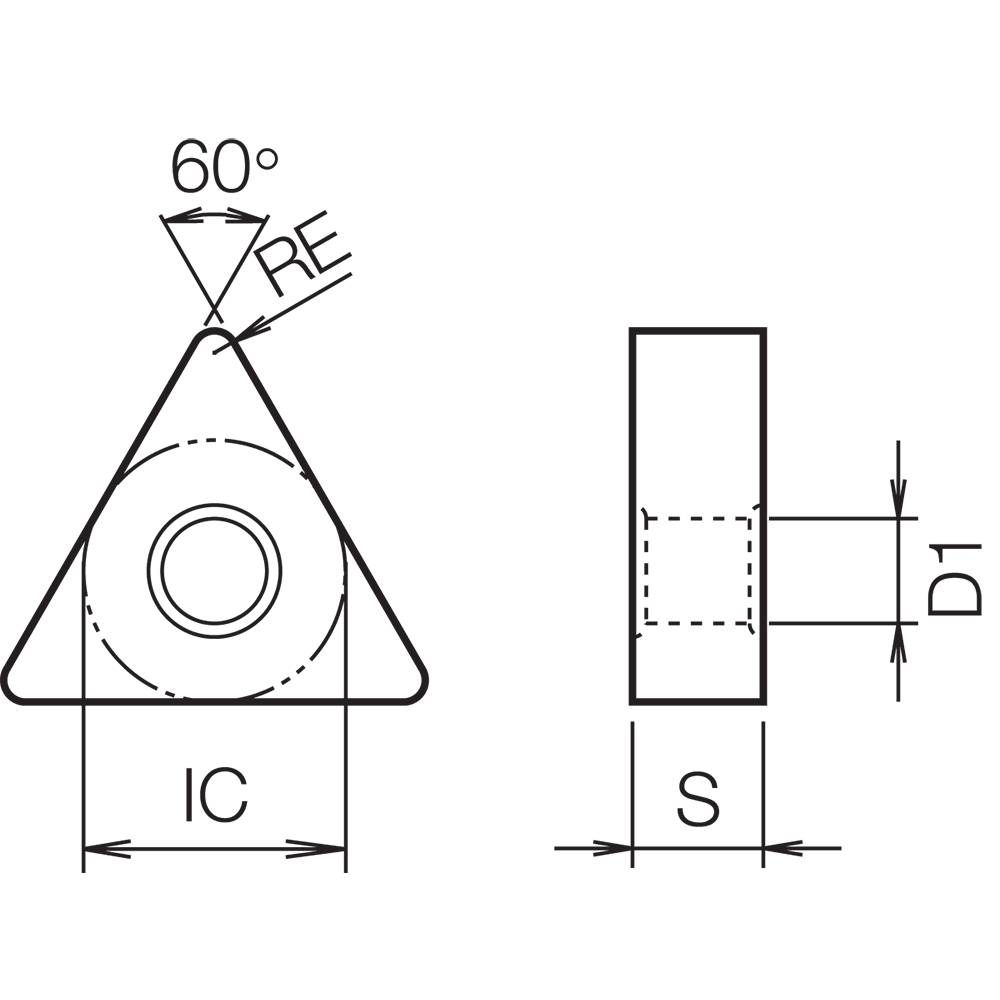

| Insert Style | TNGA | Fixing Hole Diameter (D1) | 0.15″ |
| Corner Radius (RE) | 1/64″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 331 | Number of Cutting Edges | 6 |
| Insert Thickness (S) | 3/16″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Shape | Triangle |
| Cutting Edge Material | Ceramic |
Product Features
| Family Description | Alternate Manufacture # TNGA331T00825A65 | Country of Origin | Japan |
Shipping Info
Package Weight
.0772
