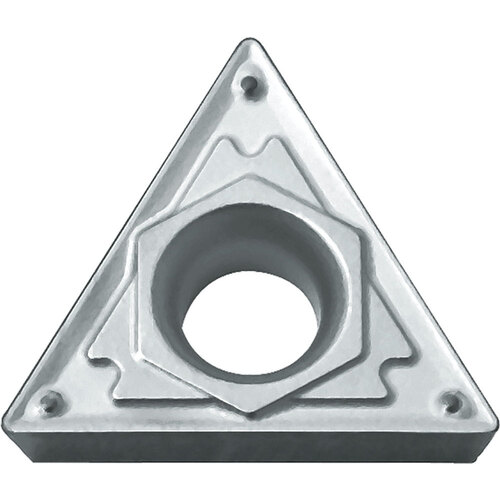

TCMT 2151 HQ KW10, 1/64″ Corner Radius, 3/32″ Thick, 1/4″ Inscribed Circle, WC/Co, Triangle, Turning Indexable Insert
Turning Insert; Triangle x 1/4″ IC × 1/64″ Corner Radius ; KW10 ; Carbide ; Uncoated
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Coating | Uncoated |
| Application | External Turning | Grade | KW10 |

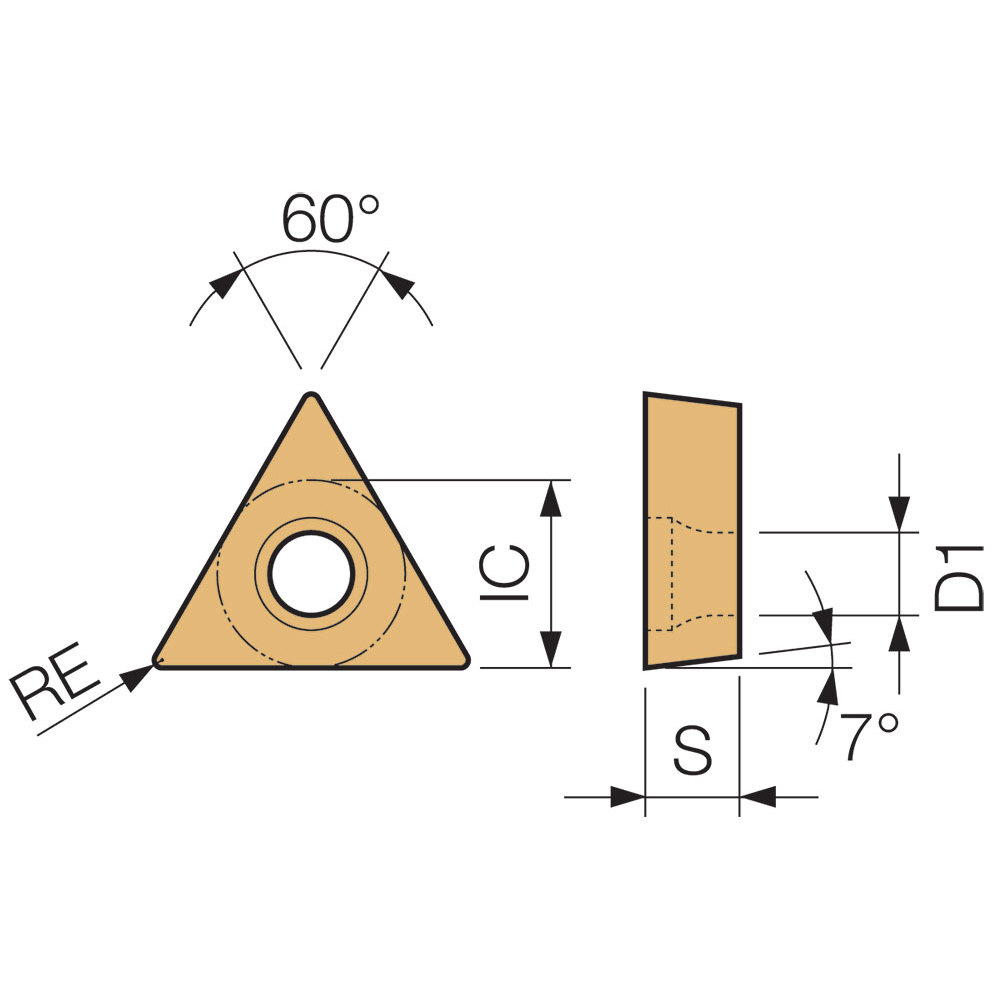

| Insert Style | TCMT | Fixing Hole Diameter (D1) | 0.1102″ |
| Corner Radius (RE) | 1/64″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 2151 | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 3/32″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/4″ | Chip Breaker Type | HQ |
| Cutting Edge Material | Carbide | Shape | Triangle |
Product Features
| Family Description | Alternate Manufacture # TCMT2151HQKW10 | Country of Origin | Japan |
Shipping Info
Package Weight
.0675
