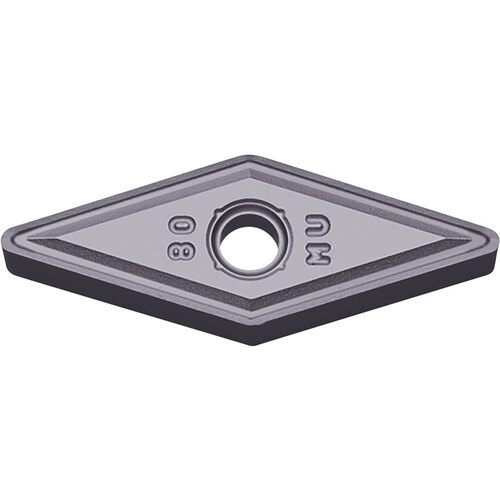

VNMG 331 MU PR1535, 1/64″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, MEGACOAT NANO, Diamond, Turning Indexable Insert
Turning Insert; Diamond x 3/8″ IC × 1/64″ Corner Radius ; PR1535 ; Carbide ; MEGACOAT NANO
| Applicable Material | | Super-Alloys / Titanium | | Grade | PR1535 |
| Application | External Turning | Copying | Facing | Undercutting | Fixing Hole Diameter (D1) | 0.15″ |
| Insert Style | VNMG | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 1/64″ | Number of Cutting Edges | 4 |
| Insert Size | 331 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ | Chip Breaker Type | MU |
| Inscribed Circle Diameter (IC) | 3/8″ | Shape | Diamond |
| Cutting Edge Material | Carbide | Series/List # | PR15-Series |
| Coating | MEGACOAT NANO |
Product Features
| Family Description | Alternate Manufacture # VNMG331MUPR1535 | Country of Origin | Japan |
Shipping Info
Package Weight
.2518
