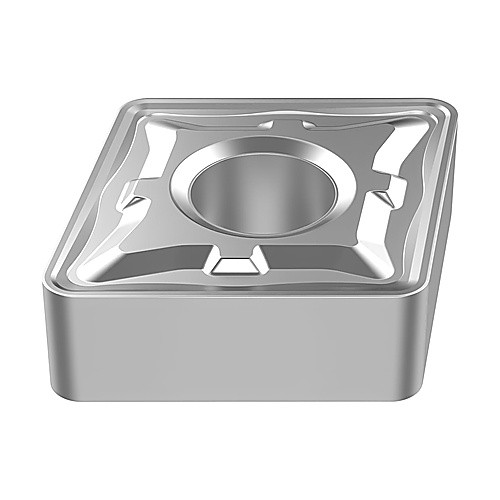

CNMG 644 M5 TP1501, 1/16″ Corner Radius, 1/4″ Thick, 3/4″ Inscribed Circle, Turning Indexable Insert
Turning Insert; CNMG644-M5 TP1501 ; 3/4″ IC ; 1/16″ Corner Radius
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | | Cutting Edge Material | Carbide |
| Insert Style | CNMG | Coating | | TiCN | Al2O3 | Cr | |
| Corner Radius (RE) | 1/16″ | Grade | TP1501 |
| Insert Size | 644 | Tool Type | Turn Negative Inserts |
| Cutting Edge Length (L) | 0.7598″ | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/4″ | Chip Breaker Type | M5 |
| Inscribed Circle Diameter (IC) | 3/4″ | Shape | 80° Diamond |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.03
