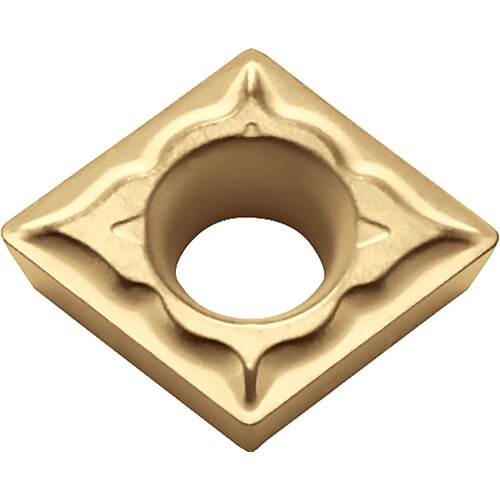

CPMT 321 XQ CA525, 1/64″ Corner Radius, 1/8″ Thick, 3/8″ Inscribed Circle, TiCnulll2O3/TiN, Diamond, Turning Indexable Insert
Turning Insert; Diamond x 3/8″ IC × 1/64″ Corner Radius ; CA525 ; Carbide ; | Al2O3 | TiN | TiCN |
| Applicable Material | | Steel | | Grade | CA525 |
| Application | Boring | Internal Facing | Fixing Hole Diameter (D1) | 0.1732″ |
| Insert Style | CPMT | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 1/64″ | Number of Cutting Edges | 2 |
| Insert Size | 321 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/8″ | Chip Breaker Type | XQ |
| Inscribed Circle Diameter (IC) | 3/8″ | Shape | Diamond |
| Cutting Edge Material | Carbide | Series/List # | CA5-Series |
| Coating | | Al2O3 | TiN | TiCN | |
Product Features
| Family Description | Alternate Manufacture # CPMT321XQCA525 | Country of Origin | S.Korea |
Shipping Info
Package Weight
.1049
