TBMT 1211 DP CA525, 1/64″ Corner Radius, 1/16″ Thick, 5/32″ Inscribed Circle, TiCnulll2O3/TiN, Triangle, Turning Indexable Insert
Turning Insert; Triangle x 5/32″ IC × 1/64″ Corner Radius ; CA525 ; Carbide ; | Al2O3 | TiN | TiCN |
| Applicable Material | | Steel | | Grade | CA525 |

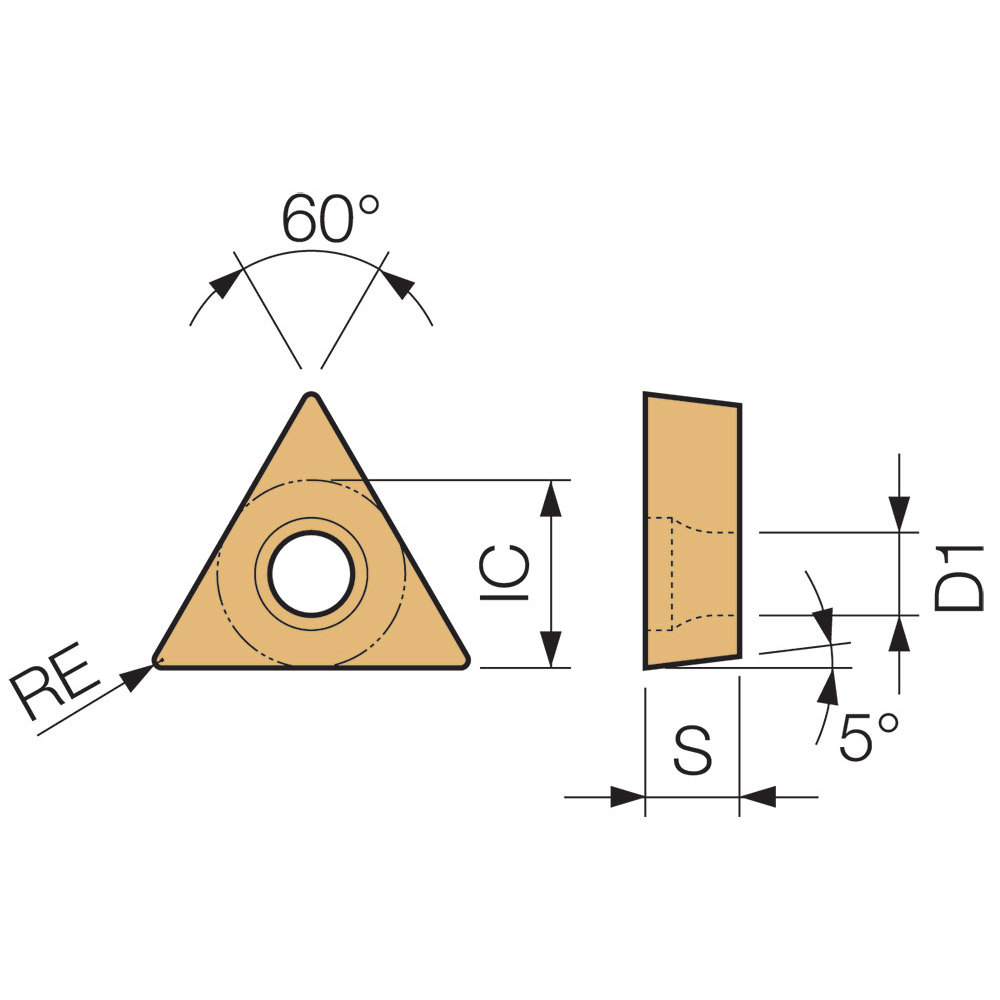

| Application | Boring | Internal Facing | Copying | Back Boring | Fixing Hole Diameter (D1) | 0.0906″ |
| Insert Style | TBMT | Clearance Angle Major (AN) | 5 Degrees |
| Corner Radius (RE) | 1/64″ | Number of Cutting Edges | 3 |
| Insert Size | 1211 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/16″ | Chip Breaker Type | DP |
| Inscribed Circle Diameter (IC) | 5/32″ | Shape | Triangle |
| Cutting Edge Material | Carbide | Series/List # | CA5-Series |
| Coating | | Al2O3 | TiN | TiCN | |
Product Features
| Family Description | Alternate Manufacture # TBMT1211DPCA525 | Country of Origin | Japan |
Shipping Info
Package Weight
.0370
