SCMT 3251 HQ CA530, 1/64″ Corner Radius, 5/32″ Thick, 3/8″ Inscribed Circle, TiCnulll2O3/TiN, Square, Turning Indexable Insert
Turning Insert; Square x 3/8″ IC × 1/64″ Corner Radius ; CA530 ; Carbide ; | Al2O3 | TiN | TiCN |
| Applicable Material | | Steel | | Grade | CA530 |

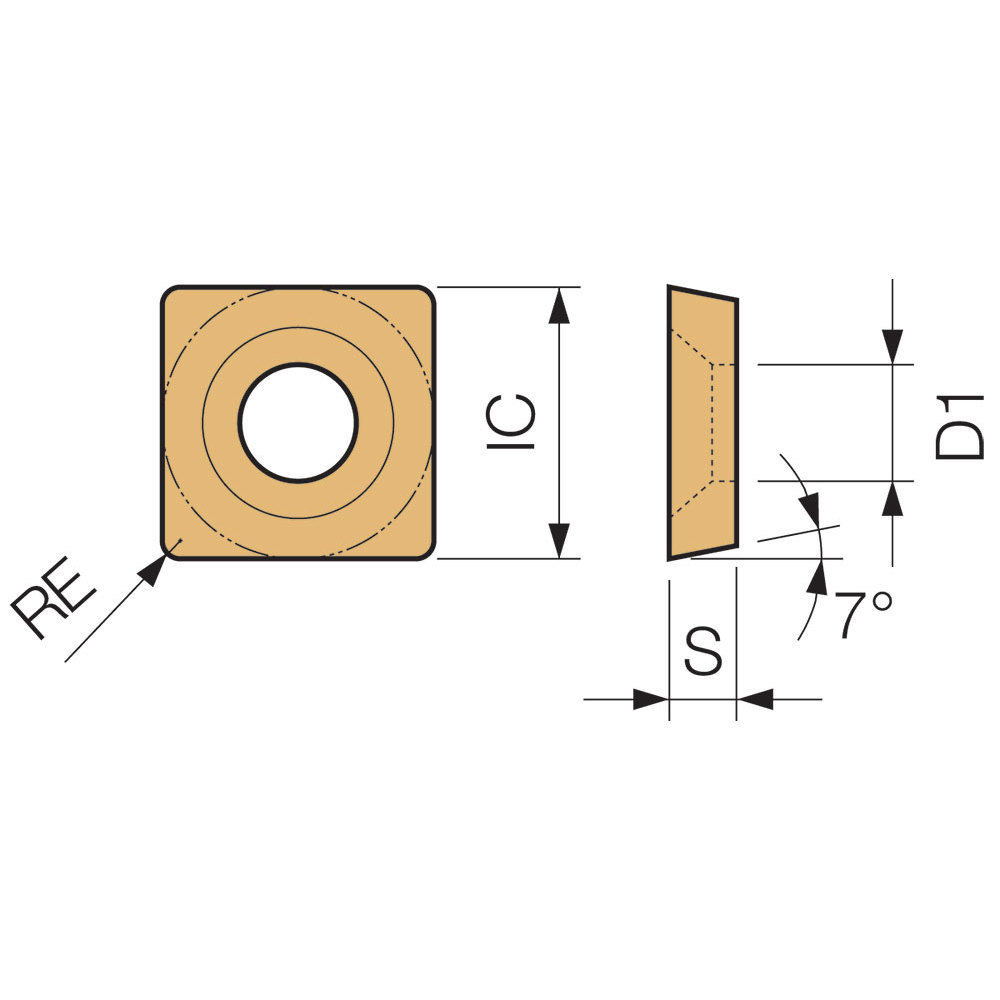

| Application | External Turning | Facing | Chamfering | Boring | Fixing Hole Diameter (D1) | 0.1732″ |
| Insert Style | SCMT | Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 1/64″ | Number of Cutting Edges | 4 |
| Insert Size | 3251 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 5/32″ | Chip Breaker Type | HQ |
| Inscribed Circle Diameter (IC) | 3/8″ | Shape | Square |
| Cutting Edge Material | Carbide | Series/List # | CA5-Series |
| Coating | | Al2O3 | TiN | TiCN | |
Product Features
| Family Description | Alternate Manufacture # SCMT3251HQCA530 | Country of Origin | Japan |
Shipping Info
Package Weight
.1160
