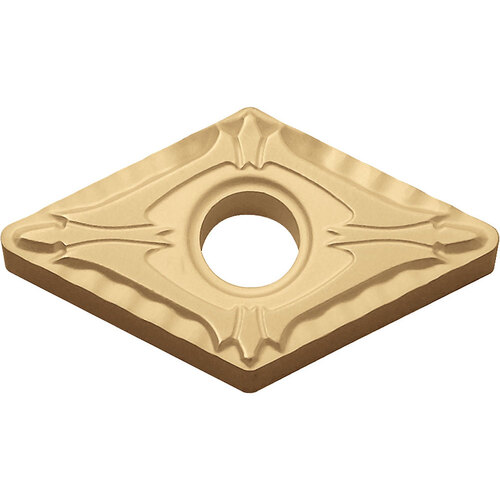

DNMG 431 XP CA525, 1/64″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, TiCnulll2O3/TiN, Diamond, Turning Indexable Insert
Turning Insert; Diamond x 1/2″ IC × 1/64″ Corner Radius ; CA525 ; Carbide ; | Al2O3 | TiN | TiCN |
| Applicable Material | | Steel | | Grade | CA525 |
| Application | External Turning | Copying | Boring | Fixing Hole Diameter (D1) | 0.2031″ |
| Insert Style | DNMG | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 1/64″ | Number of Cutting Edges | 4 |
| Insert Size | 431 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ | Chip Breaker Type | XP |
| Inscribed Circle Diameter (IC) | 1/2″ | Shape | Diamond |
| Cutting Edge Material | Carbide | Series/List # | CA5-Series |
| Coating | | Al2O3 | TiN | TiCN | |
Product Features
| Family Description | Alternate Manufacture # DNMG431XPCA525 | Country of Origin | Japan |
Shipping Info
Package Weight
.2959
