CCGT 32505 MP-CK PR1225, 0.0079″ Corner Radius, 5/32″ Thick, 3/8″ Inscribed Circle, MEGACOAT, Diamond, Turning Indexable Insert
Turning Insert; Diamond x 3/8″ IC × 0.0079″ Corner Radius ; PR1225 ; Carbide ; MEGACOAT

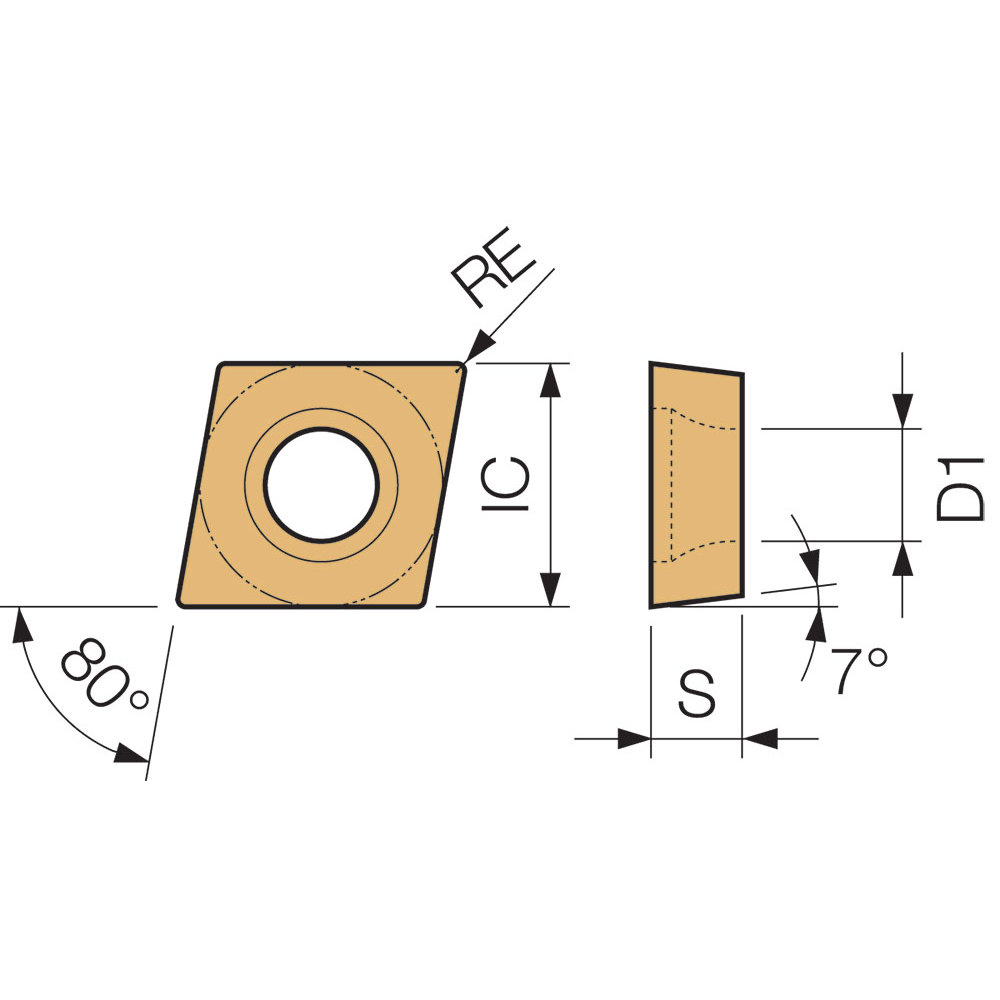

| Applicable Material | | Steel | | Grade | PR1225 |
| Application | External Turning | Facing | Boring | Internal Facing | Sub-Spindle | Fixing Hole Diameter (D1) | 0.1732″ |
| Insert Style | CCGT | Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.0079″ | Number of Cutting Edges | 2 |
| Insert Size | 32505 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 5/32″ | Chip Breaker Type | MP-CK |
| Inscribed Circle Diameter (IC) | 3/8″ | Shape | Diamond |
| Cutting Edge Material | Carbide | Series/List # | PR12-Series |
| Coating | MEGACOAT |
Product Features
| Family Description | Alternate Manufacture # CCGT32505MPCKPR1225 | Country of Origin | Japan |
Shipping Info
Package Weight
.1032
