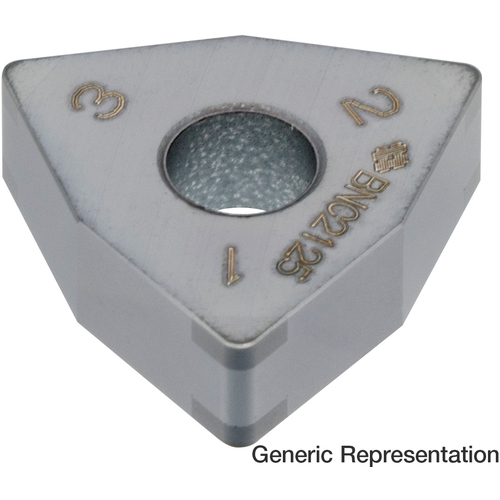

6NCWNGA432WH-BNC200 Turning Insert
Turning Insert; 80 Trigon × 1/2″ IC × 0.031″ Corner Radius ; BNC200 ; PCBN
| Applicable Material | | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | BNC200 |
| Insert Style | WNGA | Fixing Hole Diameter (D1) | 0.203″ |
| Corner Radius (RE) | 0.031″ | Tool Type | Turning Insert |
| Insert Size | 432 | Depth of Cut Maximum (APMX) | 0.015″ |
| Cutting Edge Length (L) | 0.0748″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 3/16″ | Number of Cutting Edges | 6 |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | PCBN | Chip Breaker Type | WH |
| Coating | TiN | Shape | 80° Trigon |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.12
