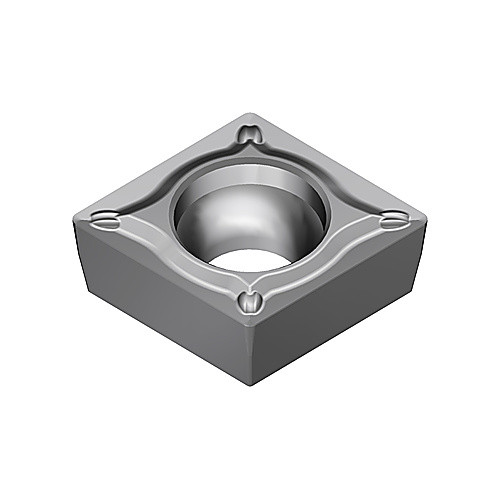

CCMT32.51ESU-T1500A Turning Insert
Turning Insert; 80 Diamond × 3/8″ IC × 0.016″ Corner Radius ; T1500A ; Cermet
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Grade | T1500A |
| Insert Style | CCMT | Fixing Hole Diameter (D1) | 0.173″ |
| Corner Radius (RE) | 0.016″ | Tool Type | Turning Insert |
| Insert Size | 32.51 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.1398″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.016″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | ESU |
| Cutting Edge Material | Cermet | Shape | 80° Diamond |
| Coating | UNCOATED |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.012
