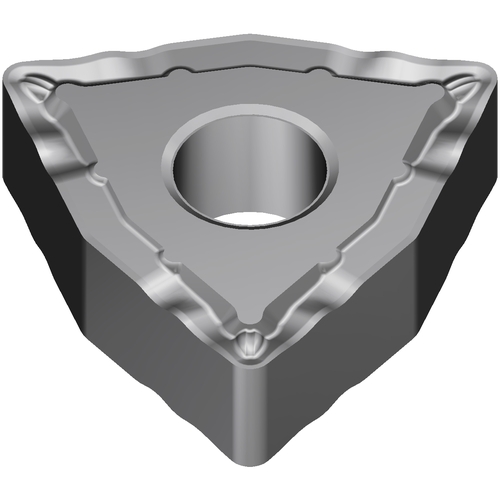

WNMG431ESX-T1500A INSERT
Turning Insert; 80 Trigon × 1/2″ IC × 0.016″ Corner Radius ; T1500A ; Cermet
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Grade | T1500A |
| Insert Style | WNMG | Fixing Hole Diameter (D1) | 0.203″ |
| Corner Radius (RE) | 0.016″ | Tool Type | Turning Insert |
| Insert Size | 431 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.3425″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 3/16″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | ESX |
| Cutting Edge Material | Cermet | Shape | 80° Trigon |
| Coating | UNCOATED |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.025
