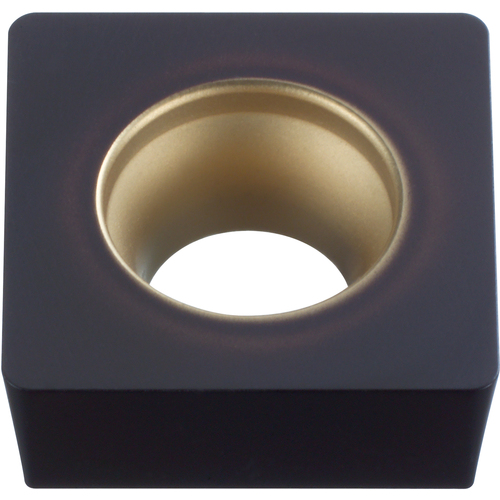

SCMW 432 flat_top MC5015, 0.8 mm Corner Radius, 4.76 mm Thick, 12.7 mm Inscribed Circle, Turning Indexable Insert
Turning Insert; Square x 12.7 mm IC × 0.8 mm Corner Radius ; MC5015 ; Carbide
| Applicable Material | | Cast Iron | | Fixing Hole Diameter (D1) | 5.5 mm |
| Insert Style | SCMW | Tool Type | Turning Insert |
| Corner Radius (RE) | 0.8 mm | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 432 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 4.76 mm | Chip Breaker Type | flat_top |
| Inscribed Circle Diameter (IC) | 12.7 mm | Quantity | 10 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Shape | Square |
| Grade | MC5015 | Series/List # | MC5015 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.4
