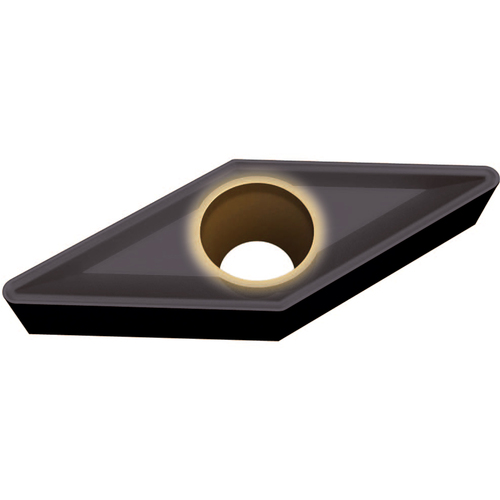

VCMT 331 MK MC5015, 1/64″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Turning Insert; 35 Rhombic × 9.525 mm IC × 0.4 mm Corner Radius ; MC5015 ; Carbide
| Applicable Material | | Cast Iron | | Grade | MC5015 |
| Application | Medium Cutting | Fixing Hole Diameter (D1) | 4.4 mm |
| Insert Style | VCMT | Tool Type | Turning Insert |
| Corner Radius (RE) | 0.4 mm | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 331 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 4.76 mm | Chip Breaker Type | MK |
| Inscribed Circle Diameter (IC) | 9.525 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 35 Degrees | Shape | 35° Rhombic |
| Cutting Edge Material | Carbide | Series/List # | MC5015 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.4000
