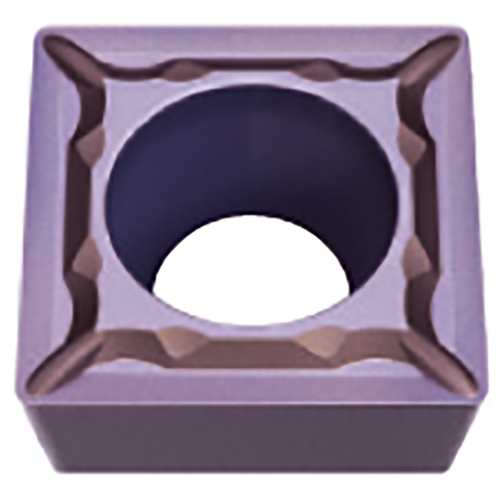

SCMT 32.52 FM VP15TF, 0.8″ Corner Radius, 0.156″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Turning Insert; Square x 9.525 mm IC × 0.8 mm Corner Radius ; VP15TF ; Carbide
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | VP15TF |
| Application | Finish Cutting | Fixing Hole Diameter (D1) | 4.4 mm |
| Insert Style | SCMT | Tool Type | Turning Insert |
| Corner Radius (RE) | 0.8 mm | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 32.52 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3.97 mm | Chip Breaker Type | FM |
| Inscribed Circle Diameter (IC) | 9.525 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 90 Degrees | Shape | Square |
| Cutting Edge Material | Carbide | Series/List # | VP15TF |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.4
