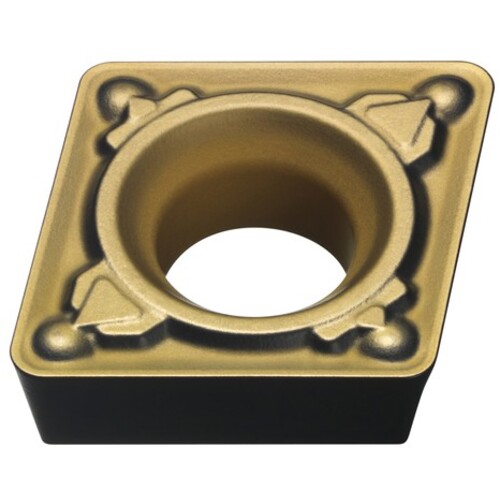

CPMH 322 MV MC6025, 0.8 mm Corner Radius, 3.18 mm Thick, 9.525 mm Inscribed Circle, Turning Indexable Insert
Turning Insert; 80 Rhombic × 9.525 mm IC × 0.8 mm Corner Radius ; MC6025 ; Carbide
| Applicable Material | | Steel | | Fixing Hole Diameter (D1) | 4.5 mm |
| Application | Medium Cutting | Tool Type | Turning Insert |
| Insert Style | CPMH | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.8 mm | Cutting Direction (HAND) | Neutral |
| Insert Size | 322 | Chip Breaker Type | MV |
| Insert Thickness (S) | 3.18 mm | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 9.525 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 80 Degrees | Shape | 80° Rhombic |
| Cutting Edge Material | Carbide | Series/List # | MC6025 |
| Grade | MC6025 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.4
