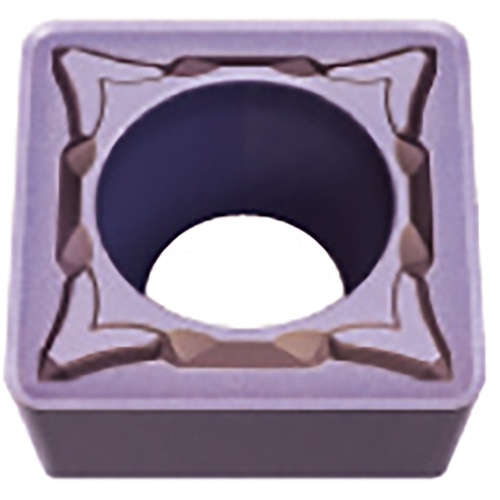

SCMT 32.51 LM VP15TF, 0.4 mm Corner Radius, 3.97 mm Thick, 9.525 mm Inscribed Circle, Turning Indexable Insert
Turning Insert; Square x 9.525 mm IC × 0.4 mm Corner Radius ; VP15TF ; Carbide
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 4.4 mm |
| Application | Light Cutting | Tool Type | Turning Insert |
| Insert Style | SCMT | Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.4 mm | Cutting Direction (HAND) | Neutral |
| Insert Size | 32.51 | Chip Breaker Type | LM |
| Insert Thickness (S) | 3.97 mm | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 9.525 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 90 Degrees | Shape | Square |
| Cutting Edge Material | Carbide | Series/List # | VP15TF |
| Grade | VP15TF |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.4000
