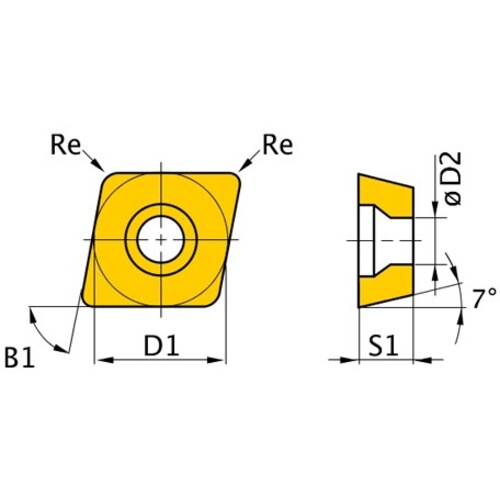

CCGW 21.52 flat_top MB4020, 0.8 mm Corner Radius, 2.38 mm Thick, 6.35 mm Inscribed Circle, Turning Indexable Insert
Turning Insert; 80 Rhombic × 6.35 mm IC × 0.8 mm Corner Radius ; MB4020 ; CBN
| Applicable Material | | Cast Iron | Hard Materials | | Fixing Hole Diameter (D1) | 2.8 mm |
| Application | Finish Cutting | Tool Type | Turning Insert |
| Insert Style | CCGW | Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.8 mm | Cutting Direction (HAND) | Neutral |
| Insert Size | 21.52 | Chip Breaker Type | flat_top |
| Insert Thickness (S) | 2.38 mm | Quantity | 1 |
| Inscribed Circle Diameter (IC) | 6.35 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 80 Degrees | Shape | 80° Rhombic |
| Cutting Edge Material | CBN | Series/List # | MB4020 |
| Grade | MB4020 | Cutting Edge Effective Length (LE) | 2.1 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.4
