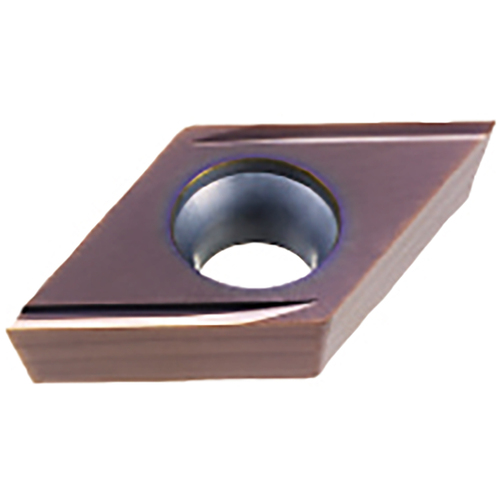

DCGT32.51RSN VP15TF
Turning Insert; 55 Rhombic × 9.525 mm IC × 0.4 mm Corner Radius ; VP15TF ; Carbide
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 4.4 mm |
| Application | Medium Cutting | Tool Type | Turning Insert |
| Insert Style | DCGT | Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.4 mm | Cutting Direction (HAND) | Right Hand |
| Insert Size | 32.51 | Chip Breaker Type | R-SN |
| Insert Thickness (S) | 3.97 mm | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 9.525 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 55 Degrees | Shape | 55° Rhombic |
| Cutting Edge Material | Carbide | Series/List # | VP15TF |
| Grade | VP15TF | Cutting Edge Effective Length (LE) | 6.5 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.012
