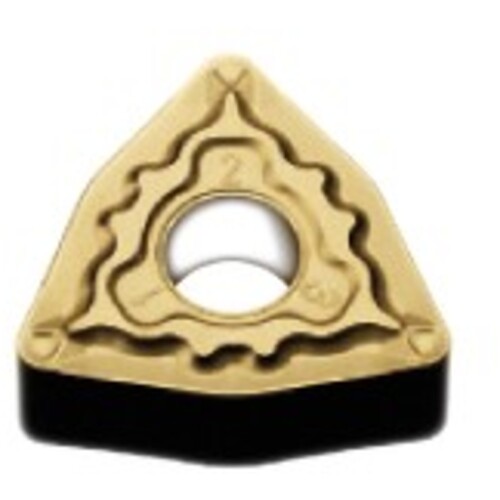

WNMG 431 MP MP3025, 0.4 mm Corner Radius, 4.76 mm Thick, 12.7 mm Inscribed Circle, Turning Indexable Insert
Turning Insert; Trigon x 12.7 mm IC × 0.4 mm Corner Radius ; MP3025 ; Cermet
| Applicable Material | | Steel | | Grade | MP3025 |
| Application | Medium Cutting | Fixing Hole Diameter (D1) | 5.16 mm |
| Insert Style | WNMG | Tool Type | Turning Insert |
| Corner Radius (RE) | 0.4 mm | Cutting Direction (HAND) | Neutral |
| Insert Size | 431 | Chip Breaker Type | MP |
| Insert Thickness (S) | 4.76 mm | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 80 Degrees | Shape | Trigon |
| Cutting Edge Material | Cermet | Series/List # | MP3025 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.4000
