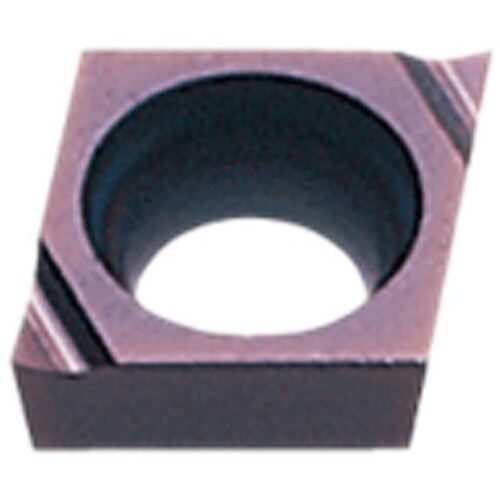

CCGT 03S102 L-F MP3025, 0.2 mm Corner Radius, 1.39 mm Thick, 3.57 mm Inscribed Circle, Turning Indexable Insert
Turning Insert; 80 Rhombic × 3.57 mm IC × 0.2 mm Corner Radius ; MP3025 ; Cermet
| Applicable Material | | Steel | | Fixing Hole Diameter (D1) | 2 mm |
| Application | Finish Cutting | Tool Type | Turning Insert |
| Insert Style | CCGT | Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.2 mm | Cutting Direction (HAND) | Left Hand |
| Insert Size | 03S102 | Chip Breaker Type | L-F |
| Insert Thickness (S) | 1.39 mm | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 3.57 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 80 Degrees | Shape | 80° Rhombic |
| Cutting Edge Material | Cermet | Series/List # | MP3025 |
| Grade | MP3025 | Cutting Edge Effective Length (LE) | 1.5 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.4
